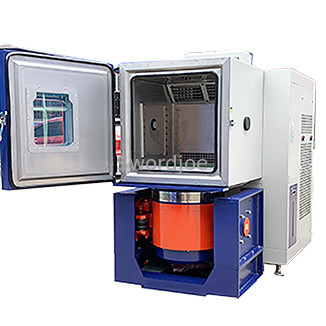

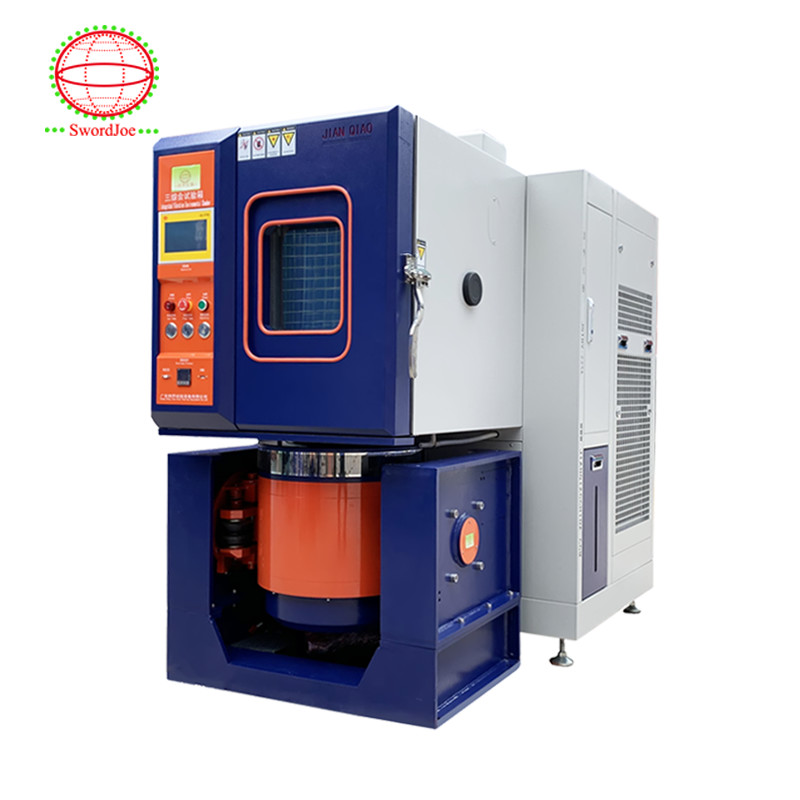

Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Product Details
| Humidity Range: | 10% To 98% RH | Control System: | PID Microprocessor Controller |
|---|---|---|---|
| Temperature Fluctuation: | ±0.1~±0.8 | Internal Material: | Stainless Steel(SUS304) |
| Condenser: | Water Cooled | Warranty: | 1 Year |
| Heater: | Nickel Chromium Alloy Heating Wire | Frequency Ran: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Internal Size: | 800(W)*800(H)*800(D) |
| Temperature F: | 0.1~1.5°C/Min | ||
| Highlight |
Agree Chamber Vertical,Combined Agree Chamber,Humidity Vibration Chamber Machine |
||
Product Description
High and Low Temperature Vibration Combined chamber (JQTHV-500): mainly the combination of test chamber of vibration test system, temperature, humidity, vibration (high temperature or low temperature), (sinusoidal vibration or random vibration,shock test ) and electrical stress according to regulations.
The cycle is integrated into the sample in the same climate chamber to perform an "environmental simulation" test of temperature, humidity, and vibration. Compared with a single environmental factor, the product is more realistically simulated in the transportation and actual use environment, and the requirements of different working conditions are fully considered in the design. It is an important for assessing and assessing the adaptability of products to environmental changes and exposing products. It is a process of new product development, reliability testing, and identification test of environmental stress screening test for mass production.
|
Model |
JQTHV-500 |
JQTHV-1000 |
JQTHV-1700 |
JQTHV-3400 |
|
Inner Size (cm) |
50*75*65 |
80*70*90 |
100*100*100 |
195*315*516 |
|
Volume (L) |
512L |
1000L |
1700L |
3400L |
|
Weight (KG) |
Subject to the actual weight |
|||
|
Temperature Range |
-70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃) |
|||
|
Humidity Range |
10%~98% RH |
|||
|
Cooling Rate |
Standard 1℃ /Min or Optional specified |
|||
|
Heating Up Rate |
Standard 3℃ /Min or specified |
|||
|
Frequency Range |
3~5000 Hz(adjustable) |
|||
|
Sine Force (kg) |
300kg to 35000kg for chooses or specified.300kg~35t |
|||
|
Displacement (mm) |
Please see vibration shaker details |
|||
|
Max.Load (kg) |
Please see vibration shaker details |
|||
|
Exterior material |
Standard 1.2mm Electrolytic plate Electrostatic spray paint |
|||
|
Interior material |
SUS 304# Stainless steel plate |
|||
|
Floor load resistance |
customized |
|||
|
Languages |
Chinese , English ,Russian |
|||
|
Controller |
TW DELTA PLC,7 " or 10" color touch screen control |
|||
|
Configuration interface |
With USB , WLAN, RS232 port , APP function is optional |
|||
|
Compressor |
French Tecumseh or German Bitzer brand or Bock |
|||
|
Power supply |
AC380V @50Hz |
|||
Product Highlights
