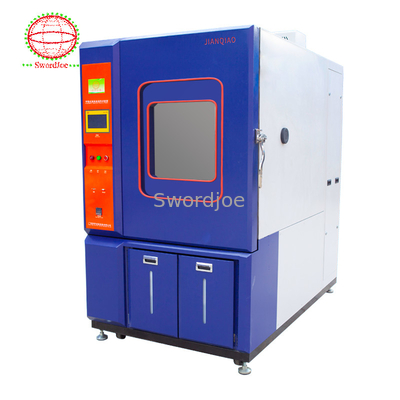

Environmental Stress Screen Test Chamber 20KW Rapid Temperature Change Test Chamber

Model

JQESS-100

JQESS-150

JQESS-225

JQESS-408

JQESS-800

JQESS-1000

JQESS-1200

JQESS-1500

Inner size (cm)

50*40*50

50*50*60

60*50*75

80*60*85

100*80*100

100*100*100

120*100*100

150*100*100

Outer size (cm)

 70*100*156

 70*125*147

 80*129*168

 80*140*180

120*155*195

120*175*195

140*175*195

170*175*195

 Volume (L)

100L

150L

225L

408L

800L

1000L

1200L

1500L

     Power(KW)

20

25

32

36

40

40

48

52

 Exterior material

  Baked Electrolytic plate with Electrostatic painting

Interior material

Stainless steel  (SUS304)

Insulation material

Rigid Polyurethane  Foam

Control method

PWM  cold end control technology

Temp Range

Model S type :-70°C~+150°C  ,   Model L type : -40°C~150°C or customized.

Humidity range

20 % to 98% RH

Linear Temp.
change Range

  -40℃~±85℃

Temperature
 change rate

  5℃/min 10℃/min 15℃/min 20℃/min 25℃/min or customize

Refrigerator

 Cascade refrigeration system

CoolingModel

Air cooled / Water cooled

Temperature sensor

PT-100 Platinum Resistance

 Controller

 TW DELTA PLC touch screen control,language ,Chinese , English , Russian

Safety devce

Over -pressure,Over-load and Over-current protector for compressor ,
Over-Temp,Protector Over-voltage coolant

Configuration interface

With USB , WLAN, RS232  port , APP function is optional

Power supply

AC 220V or AC 110V or AC380V 50Hz
