Stainless Steel Three Zone Thermal Shock Chamber AC 380V 50Hz With PLC control

1
MOQ
Stainless Steel Three Zone Thermal Shock Chamber AC 380V 50Hz With PLC control
Features Gallery Product Description Chat Now
Features
Specifications
Temperature Uniformity: ±2.0°C
Test Zone Material: Stainless Steel
Control System: PLC Touch Screen Controller
Temperature Recovery Time: ≤5 Minutes
Warranty: 1 Year
Power Supply: AC 380V, 50Hz
Temperature Fluctuation: ±0.5°C
Highlight:

Stainless Steel Three Zone Thermal Shock Chamber

,

Three Zone Thermal Shock Chamber 50Hz

,

Thermal Shock Chamber AC 380V
Basic Infomation
Brand Name: Jianqiao
Certification: CE
Model Number: JQTS-2-100
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 300
Product Description

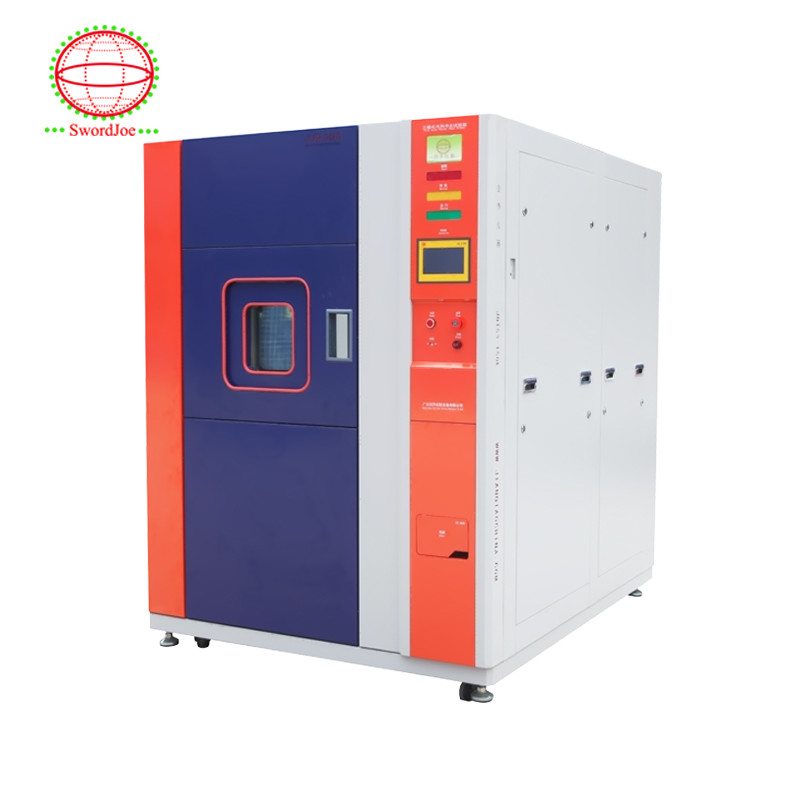

Three Zone Thermal Shock Test Chamber
Product Overview
The Three-Zone Thermal Shock Test Chamber, also known as Temperature Shock Tester or High & Low Temperature Shock Tester, evaluates product adaptability to rapid ambient temperature changes. This equipment is essential for design qualification testing, batch production quality control, and environmental stress screening in various industries including electronics, automotive, medical, and chemical sectors.
Key Specifications
Attribute Value
Temperature Uniformity ±2.0°C
Test Zone Material St stainless steel
Control System PLC touch screen controller
Temperature Recovery Time ≤5 minutes
Warranty 1 year
Power Supply AC 380V, 50Hz
Temperature Fluctuation ±0.5°C
Design Features
  • Constructed with 1.2mm thick SUS#304 stainless steel inner chamber
  • Premium electronic components from Taiwan Dongyuan, Swiss Carlo, and Japan Omron
  • Advanced refrigeration system featuring French Tecumseh or German Bock compressors
  • Separate humidification system pipeline for enhanced safety
  • Rigorous pre-delivery testing and calibration
Technical Specifications
Temperature Shock Range: A:-40℃～180℃ B:-55℃～180℃ C:-65℃～180℃
Shock Types: 4 programmable transition patterns between temperature extremes
Temperature Transfer Time: <5 seconds (Two Zone)
Recovery Time: 5-10 minutes for chamber stabilization
Model Comparison
Model JQTS3-50 JQTS3-80 JQTS3-100 JQTS3-150 JQTS3-225 JQTS3-408 JQTS3-800 JQTS3-1000
Inner Size (W*D*H cm) 40*32*42 50*40*42 55*45*42 68*50*45 75*60*50 80*80*60 100*100*80 100*125*80
Capacity (L) 50 80 100 150 225 408 800 1000
Weight (kg) 800 900 950 1050 1250 2800 3600 4500
Advanced Control System
7-inch LCD touch screen controller with 120 program capacity and 1200 steps. Features include USB/RS232 interfaces, mobile APP compatibility, and optional network connectivity for remote control. The PID+SSR+Microcomputer balance system ensures precise temperature regulation.
Safety Features
  • Fuse-free switch protection
  • Compressor high/low voltage protection
  • Over-temperature and over-current protection
  • Refrigerant high-voltage protection
  • Electronic sound-light alarm system
