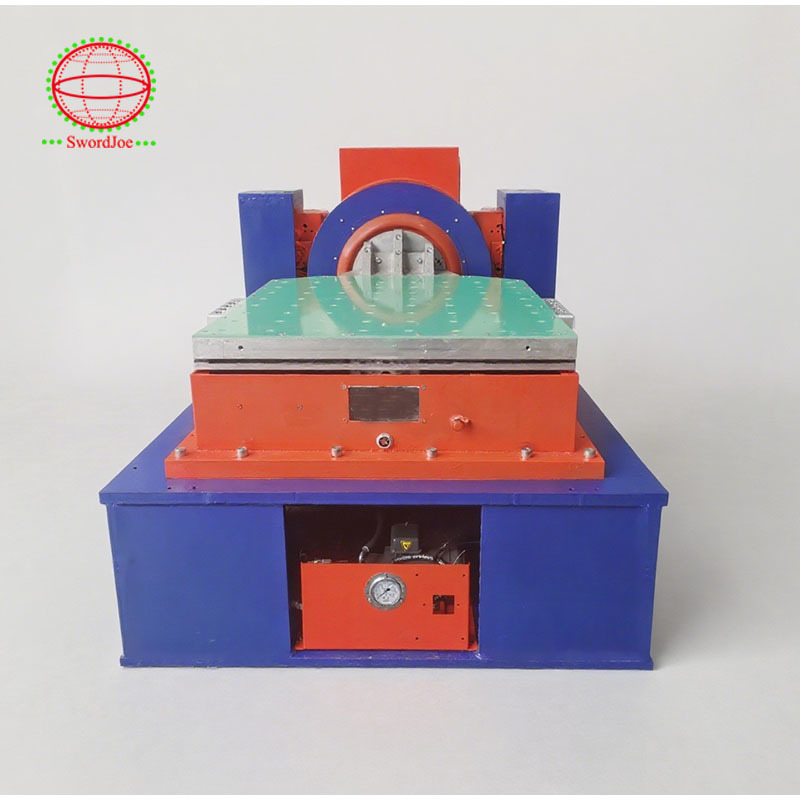

EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment

1
MOQ
EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 20kN /2000kg/4409lbf
Random Force: 20kN /2000kg/4409lbf
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 300KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

Vibration Tester Machine UN38.3

,

EV Battery Vibration Tester Machine

,

UN38.3 EV Battery Testing Equipment
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description
EV Battery Vibration Testing UN38.3 for EV Battery Testing
Product Specifications
Attribute Value
Frequency 2000Hz
Sine force 20kN /2000kg/4409lbf
Random force 20kN /2000kg/4409lbf
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 300KG
Moving parts mass 20KG
Armature diameter 335mm
Lithium-ion batteries are the most common battery type used for electric vehicles. During their lifespan, these batteries undergo various vibrations and temperature changes. Several test standards have been developed to simulate long-term environmental effects on these batteries across different size levels (cell, module, pack).
Vibration Testing Standards
Our systems support testing according to these key standards:
  • SAE J2380 - Simulates 100,000 miles of driving with random vibration profiles
  • SAE J2464 - Evaluates abuse tolerance with thermal shock cycling and shock vibration tests
  • IEC 62660-2 - Specifies reliability testing with random vibration and mechanical shock tests
  • UN 38.3 - Required for lithium battery transport certification with swept sine vibration tests
Vibration Test Types
1. Sine Vibration: Periodic vibration that changes according to a sine function, used for resonance frequency testing.
2. Random Vibration: Irregular vibration that better reflects real-world conditions during transportation and use.
3. Mixed-mode Vibration: Superposition of sine and random vibrations for complex testing scenarios.
EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 0
SAE J2380 vibration test profile
EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 1
SAE J2464 test requirements
EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 2
UN 38.3 test procedure
Shaker Specifications
Model JQA-202-335 / JQA-203-335
Frequency Range (Hz) 5-3000
Rated sinusoidal force (KN) 20
Shock force (KN) 40/60✱
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. displacement (mmp-p) 51/76
Max. load (kg) 300
Vibration isolation frequency (Hz) 2.5
Shaking table type JQ-20
Moving parts weight (kg) 23
Armature diameter (φmm) 335
About Guangdong Jianqiao Testing Equipment Co., Ltd
We are a professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With over 20 years of experience, we provide high-quality products and solutions that meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB.
Our products are widely used in new energy vehicles, aerospace, shipping, electronics and other industries, serving scientific research units, quality inspection institutions and academic fields.
EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 3 EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 4 EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 5 EV Battery Vibration Tester Machine UN38.3 EV Battery Testing Equipment 6
