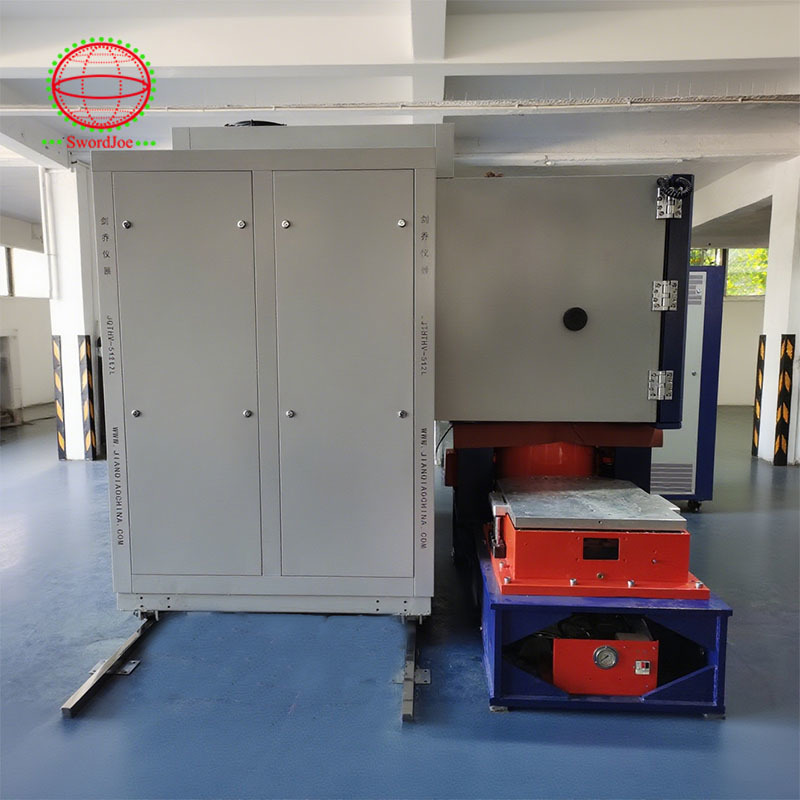

| Brand Name: | Jianqiao |
| Model Number: | JQTHV-1000 |
| MOQ: | 1 |
| Delivery Time: | 5 weeks |
| Payment Terms: | ,T/T |
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
| IEC 62660-2 | Reliability & Abuse Testing for Lithium Ion Cells in Electric Vehicles • Capacity discharge test at -20°C, 0°C, 25°C and 45°C • High temperature endurance: Raise temp at rate of 5°C/min to 130°C ±2°C, soak for 30 min • Temperature cycling: Cycles between -40°C (or specified) and +85°C (or specified) for 30 cycles • Test with electrical operation: Cycles between -20°C and +65°C for 30 cycles |
|---|---|
| SAE J2464 | EV & HEV Rechargeable Energy Storage System Safety & Abuse Testing • Thermal Stability: Increasing temperature in 5°C increments • Temperature Cycling: Cycle between 70°C to -40°C (soak cells for 1 hr, modules & packs for 6 hours), repeat for 5 cycles |
| IEC 60086-4 | Primary Batteries, Part 4: Safety of Lithium Batteries • Altitude Simulation Test: Store at pressure of 11.6 kPA or less for 6 hrs at ambient • Thermal Cycling: Store for 6 hours at 75°C and -40°C with ≤30 minute transitions for 10 cycles • External Short Circuit: Product temperature to stabilize at 55°C • Thermal Abuse: Raise temperature 5°C/min to 130°C and soak for 10 minutes |
| UL 1642 | Standard for Lithium Batteries • Short circuit test at 20°C & 55°C • Heating test from 20°C to 130°C at 5°C/min and soak for 10 minutes • Temperature Cycling test with ≤30 minute transitions between 70°C (4h), 20°C (2h), -40°C (4h) for 10 cycles • Altitude Simulation Test: Store for 6 hours at 11.6kpa (50,000) and 20°C |
| UN Lithium Battery Testing | UN Lithium Battery Testing Requirements • Altitude Simulation Test: Store at 11.6kpa (50,000) and 20°C for 6 hours • Temperature Cycling Test: Store at 75°C and -40°C for 6-12 hours with 30 minute transitions for 10 cycles |
| IEC 61960 | Secondary lithium cells and batteries for portable applications Discharge performance test at 20°C and -20°C |
| IEC 62133 | Safety requirements for portable sealed secondary cells • Altitude Simulation Test: Store at 11.6kpa (50,000) and 20°C for 6 hours • Temperature cycling: Test at 75°C (4h), 20°C (2h), -20°C (4h) with ≤30 minute transitions for 5 cycles • Thermal Abuse: Heat from 20°C to 130°C at 5°C/min and soak for 10 minutes |
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D: -70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
