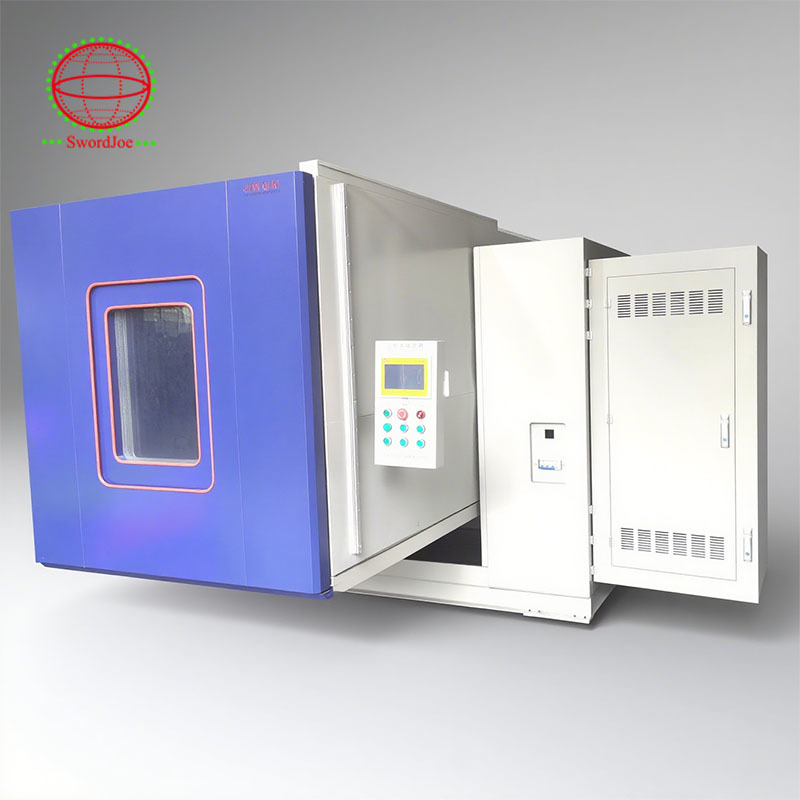

Precision Agree Testing Chamber Customized Optimize Performance
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Precision Agree Testing Chamber,Agree Testing Chamber Customized |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
- Designed to fit over a vibration table
- Standard temperature range: -40°C to +150°C
- Temperature change rates: 5°C/Min
- Standard sizes: 27 to 64 cubic feet
- Interiors fabricated of heavy gauge brushed finish Type 304 stainless steel
- Heliarc welded interior seams to form a rugged, vapor-tight unit
- Insulated with non-settling, non-hygroscopic high "R" value fiberglass
- Exteriors fabricated of structural steel and corrosion resistant steel sheet metal
- Removable floor with diaphragm for test product attachment to vibration table
- Standard 2" diameter customer port
- Dual silicone rubber gaskets to seal door to the chamber
- Heavy-duty door hinges and adjustable door latch
- Tough, industrial quality, textured enamel paint finish
- Access panels for easy serviceability
- Stainless steel drain with check valve
- Pressure equalization system
- Standard chamber finish is medium gray
- All chambers allow handling with a forklift
- Heavy duty, industrial quality, semi-hermetic compressors
- Thermal expansion valves for optimal cooling control
- Liquid injection valves for compressor cooling
- Bypass systems for accurate temperature control
- Bypass time-out feature reduces energy consumption
- Refrigeration pressure gauges on all systems
- High quality commercially available components
- Electrical resistance heaters with low mass open nichrome elements
- Heaters baffled from test space to prevent direct radiation
- Controlled by heavy duty, quiet mercury contactors
- Standard thermal links or electronic high temperature limiters
- High volume, propeller type fan blades
- Externally located fan motors with lubricated-for-life bearings
- Integral one-piece stainless steel extended fan motor shafts
- Chamber conditioning systems interlocked to air circulation
- Designed to minimize temperature gradients
- Microprocessor based programmer/controller on all chambers
- User selectable Fahrenheit or Celsius temperature indication
- Humidity setting and indication in percent relative humidity
- Operator-oriented features for easy operation and programming
- Digital indication of program and control parameters
- Looping feature for repeating complete or partial programs
- Guaranteed soak feature for precise temperature control
- Real-time clock
- Protection against power failure data loss
- Three-mode controller action for optimal control
- Components mounted in fully enclosed electrical cabinet
- Power connection terminal block and ground lug
- All wiring enclosed in wiring ducts or bundled and strapped
- All wires numbered for easy identification
- Wiring meets or exceeds National Electrical Code
- Wire color coded per international specifications
- Guards on all conditioner fan blades
- Non-toxic, non-flammable refrigerants
- Gauges to indicate refrigeration system pressures
- Pressure relief valves or fusible plugs
- High pressure switches on all refrigeration systems
- Thermal links or electronic high temperature limiters
- Conditioning/air circulation interlock
- All electrical circuits protected by fuses or circuit breakers
- Refrigeration compressors protected against overload
- Humidity System
- Removable solid floor for chamber use without vibration table
- Optional instrumentation systems
- Instrumentation consoles
- Recorders - circular and strip-chart styles
- Product high and low temperature limit alarms
- Digital communications interfaces (EIA-232 / EIA485)
- Additional chamber portholes
- Viewing windows
- Window wipers
- Interior lights
- Casters
- Gaseous nitrogen purge
- Acoustic insulation package
- Custom paint finishes
- Larger or smaller capacity refrigeration systems
- Air or water-cooled condensers
- Water mizer package to minimize water consumption
- Liquid nitrogen cooling/assist packages
- Optional heating systems for temperature change rates
- Humidity water deionizer filter packages
- Running time meters
1. Test chamber air temperature control tolerance ±2°F.
2. Standard humidity specifications: 20% to 95% ±5% RH within the dry bulb temperature range of 40°F (4.5°C) to 185°F (85°C) and limited by a dew point temperature of 40°F (4.5°C).
3. Options available to match customer utility requirements:
- Non-standard power configurations
- Air or water-cooled condensers for mechanical refrigeration systems
4. Options available to enhance test chamber performance:
- Refrigeration packages to increase temperature change rates and live load capacities
- Heating packages to increase temperature change rates
5. Stated chamber performance may be affected by the addition of certain optional accessories.
6. Specifications subject to change without notice as part of continuous product improvement.
With over five decades of experience, Jianqiao Company has built an excellent reputation for designing and fabricating custom environmental test chambers. When standard models don't meet your requirements, we can modify existing chambers or build units to your exact specifications. Contact us to discuss your specific needs.
- Temperature and Temperature/Humidity Chambers up to 4,000 cubic feet
- Industrial Freezers to -300°F
- Temp-Climber Ovens to +700°F
- Modular/Panel Units
- Temperature/Altitude and Temperature/Altitude/Humidity Chambers
- Thermal Shock Units
- Solar Radiation Chambers
- Explosion-proof Chambers
- Convection Fluid Equipment
- Portable Temperature Conditioning Systems
- Expendable Refrigerant Test Chambers -- Benchtop and Floor Models
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz(adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified.300kg~35t | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max.Load (kg) | Please see vibration shaker details | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC,7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
