100kHz Vibration Controller Sine Test Random Test Classical Shock RSTD
Product Details
| Signal Analysis Features: | FFT, PSD, Time Domain | Signal Type: | Vibration |
|---|---|---|---|
| Signal Sampling Rate: | 100kHz | Signal Processing Type: | Digital |
| Vibration Signal Soure: | Software | Signal Recording Features: | Continuous, Triggered, Pre-trigger |
| Signal Output Format: | CSV, Excel, Matlab | Signal Output Type: | Analog |
| Signal Processing Features: | Filtering, Averaging, Peak Detection | Signal Amplitude Range: | 0-10V |
| Signal Compatibility: | Windows, Mac, Linux | Signal Frequency Range: | 0-20kHz |
| Signal Resolution: | 16-bit | ||
| Highlight |
Vibration Controller Sine Test,100kHz Vibration Controller,100kHz Vibrating Controller |
||
Product Description

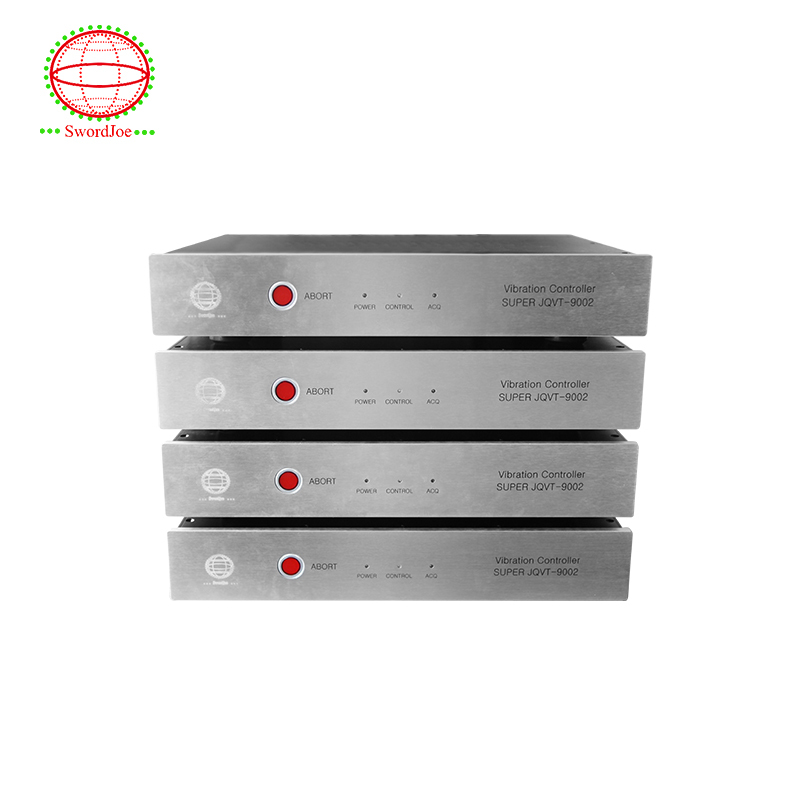

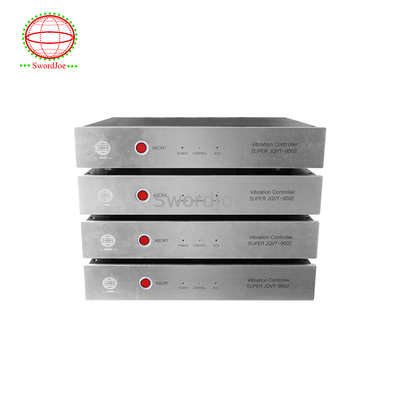

Professional-grade vibration controller supporting sine test, random test, classical shock, and RSTD (Resonance Search and Tracked Dwell) applications.
- 1-2 analog input channels with 24-bit resolution
- 1 drive channel with 24-bit DAC
- 450MHz DSP processing for real-time control
- 100 Mbps Ethernet connectivity
- Wide operating temperature range (-30°C to 70°C)
- Fanless design for reduced background noise
- 160 dB/Octave anti-aliasing filter
- 135dB dynamic range
- 204.8 kHz sampling rate with 80kHz frequency range
- 1GB internal flash memory for test configuration storage
| Attribute | Specification |
|---|---|
| Signal Analysis Features | FFT, PSD, Time Domain |
| Signal Type | Vibration |
| Signal Sampling Rate | 100kHz |
| Signal Processing Type | Digital |
| Signal Recording Features | Continuous, Triggered, Pre-trigger |
| Signal Output Format | CSV, Excel, Matlab |
| Signal Amplitude Range | 0-10V |
| Signal Compatibility | Windows, Mac, Linux |
| Signal Frequency Range | 0-20kHz |
| Signal Resolution | 16-bit |
- Sine control
- Random control
- Resonance Search and Tracked Dwell (RSTD)
- Classical shock
- Multi-variable control
- THD (Total Harmonic Distortion) detection
- Data recording
- FFT analysis
- SRS (Shock Response Spectrum) analysis
- FRF (Frequency Response Function)
- Waterfall view
- Signal calculation and editing
- Word/PDF test report generation
- Email reporting capability
- Off-line viewing
| Parameter | Specification |
|---|---|
| Input Channels | 1-2 channels (BNC connector) |
| Input Resolution | 24-bit ADC |
| Input Dynamic Range | 135dB |
| SNR | > 100dB |
| Output Channels | 1 Drive Channel (BNC connector) |
| Output Resolution | 24-bit DAC |
| Max. Sampling Rate | 51.2kHz |
| Output Voltage Range | ±10Vpk |
- Dimensions: 290 × 210 × 60 mm
- Weight: 2.6 kg
- Front panel indicators: Power, Ready, Control status LEDs
- Emergency stop (Abort) button
- Working temperature: -30°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Power consumption: 10W
- Power supply: 90-280VAC (50-60Hz)
- Enclosure rating: IP42
| Feature | JQVT-9002 | JQVT-9004/9008 | JQVT-9016 |
|---|---|---|---|
| Input Channels | 2×BNC | 4 or 8×BNC | 16×BNC |
| Output Channels | 1×BNC, 1 Drive | 2×BNC, 1 Drive, 1 AUX | - |
| Dimensions | 290×210×60mm | 390×280×60mm | 435×280×60mm |
| Weight | 2.6 kg | 4.2 kg | 5.0 kg |
- Anti-vibration: IEC 68-2-6, GB/T 6587-2012 standard II
- Anti-impact: IEC 60068-2-27, GB/T 6587-2012 standard II
- EMC: EN 55022:2010, EN 55024:2010
- Safety: EN 61010-1 3rd edition
- CE Marking compliant
