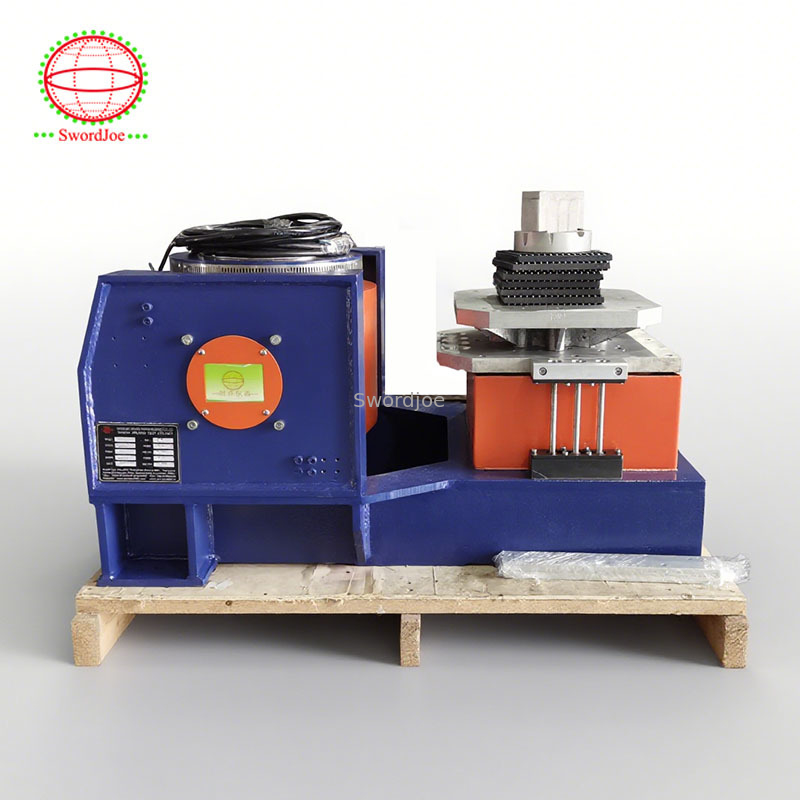

Laboratory Accurate Electrodynamic Vibration Shaker System Lab Vibration Table

Vibration isolation in a vibration test system is crucial for accurate testing results by minimizing external vibrations from interfering with the test object. It involves using isolators to reduce the transmission of vibration energy from the test system's environment to the test object, or vice versa.

Electrodynamic shakers are capable of generating high forces over a wide range of frequencies. To limit the amount of unwanted vibration energy from being transmitted into the floor and throughout the facility, pneumatic mounts between the shaker and the floor are filled with compressed air to isolate the transmission of this energy.

• Natural Frequency: Every system has a natural frequency at which it vibrates most readily. Vibration isolation aims to make the system's natural frequency lower than the frequency of the vibrations it's trying to isolate against.
• Isolation vs. Damping: Vibration isolation focuses on preventing vibration from entering or leaving a system, while damping focuses on dissipating vibration energy within the system.
• Types of Isolators: Common isolators include pneumatic (air springs), mechanical (springs), and sometimes damping pads.
• System Design: A vibration isolation system typically involves a platform to hold the test object, isolators to support the platform, and potentially a damping mechanism to further reduce vibrations.

1. Reducing Transmission: Vibration isolators, like air springs or springs, are placed between the vibration table (or the test object) and the supporting structure.
2. Lowering Natural Frequency: The isolators are designed to have a natural frequency lower than the frequencies of the vibrations being isolated.
3. Minimizing Resonance: This lower natural frequency helps prevent the system from resonating (vibrating strongly) with the input vibrations, effectively reducing the transmission of those vibrations.
4. Damping: Dampers, such as dashpots or specific materials, can be incorporated to further reduce vibration energy by absorbing it.

• Accurate Results: Without proper isolation, external vibrations can contaminate the test results, making it difficult to determine the true behavior of the test object.
• Component Protection: Vibration isolation can also protect sensitive components of the test system itself from damage caused by excessive vibration.
• Test Fidelity: In applications like flight vibration testing, isolation ensures that the test object is subjected to the intended vibration profile, mimicking real-world conditions.
