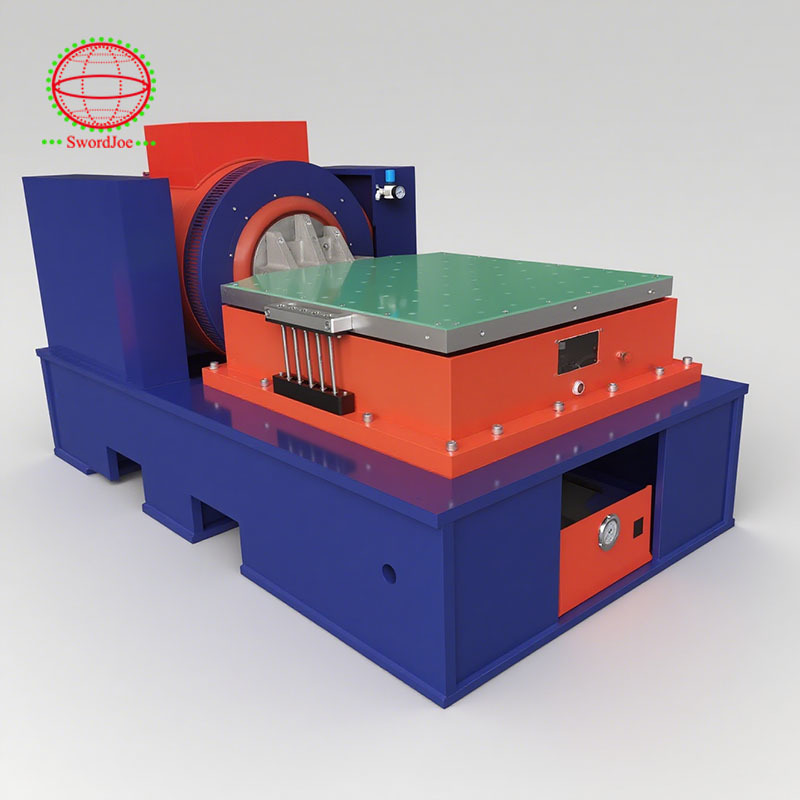

Lab Electrodynamic Shaker Table Sine Wave Random Vibration Test Device
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
Lab Electrodynamic Shaker Table,Sine Wave Electrodynamic Shaker Table,Electrodynamic Vibration Test Device |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN /2000kg/4409lbf |
| Random force | 20kN /2000kg/4409lbf |
| Shock force | 98kN /9800kg/9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
Electrodynamic Shakers are essential for vibration testing across multiple industries, ensuring product durability and reliability in various environments.
Vibration testing serves multiple purposes:
- Verifying product durability in intended use environments
- Ensuring structural integrity during shipping
- Environmental Stress Screening for production defects
- Accelerated Stress Testing for reliability improvement
These systems are widely used in military hardware, avionics, consumer electronics, automotive components, and telecommunications equipment.
Electrodynamic vibration systems can perform various tests including:
- Sine wave testing
- Random vibration testing
- Shock testing
- Complex waveform testing (sine-on-random, random-on-random)
- Real-world condition replication
The system operates similarly to an industrial-strength stereo system, consisting of:
- Vibration control system (controller)
- Power amplifier
- Shaker with moving armature in a magnetic field
- Accelerometer for closed-loop feedback
We are a professional manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment. With over 20 years of experience, we provide high-quality products and comprehensive solutions to top enterprises and end users worldwide.
Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB. They are widely used in:
- New energy vehicles
- Aerospace
- Shipping
- Electronics industry
- Scientific research institutions
- Quality inspection organizations
