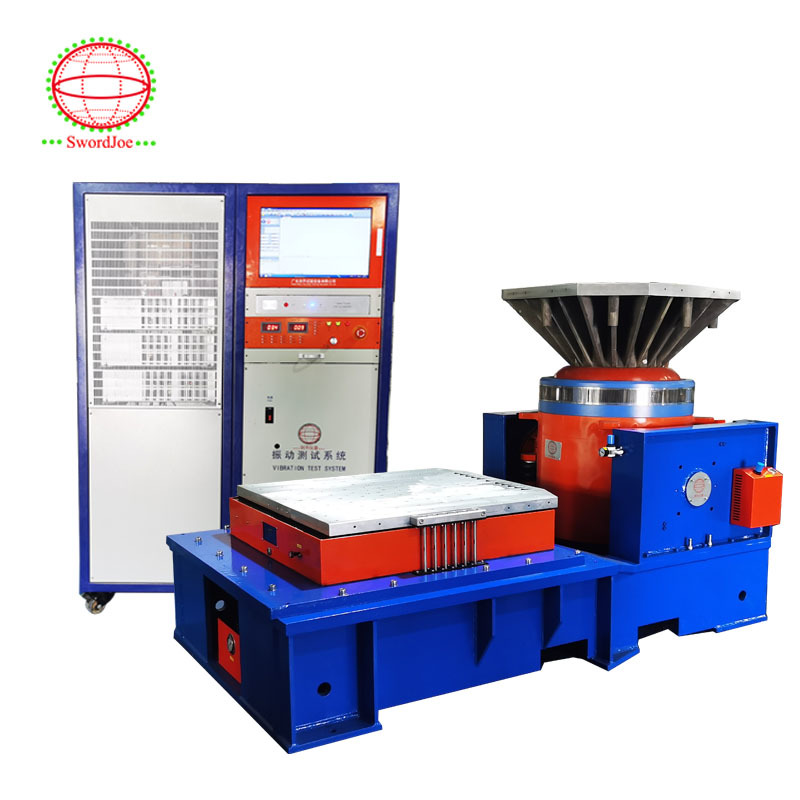

Heavy Duty Vibration Test Table Simulating Real World Conditions Shaker Table Testing
Product Details
| Frequency: | 2000Hz | Sine Force: | 49kN /4900kg/826.3lbf |
|---|---|---|---|
| Random Force: | 49kN /4900kg/826.3lbf | Shock Force: | 98kN /9800kg/1652.6lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 800KG |
| Moving Parts Mass: | 49KG | Armature Diameter: | 450mm |
| Highlight |
Heavy Duty Vibration Test Table,Shaker Vibration Test Table,Heavy Duty Vibration Shaker Table Testing |
||
Product Description
| Frequency Range | 5-2700Hz |
| Sine Force | 49kN (4900kg/826.3lbf) |
| Random Force | 49kN (4900kg/826.3lbf) |
| Shock Force | 98kN (9800kg/1652.6lbf) |
| Maximum Acceleration | 100g (980m/s²) |
| Maximum Displacement | 51mm/76mm/100mm |
| Maximum Load Capacity | 800kg |
| Armature Diameter | 450mm |
Our heavy-duty vibration shaker is engineered to simulate real-world conditions with precision, making it ideal for defense, aerospace, automotive, and industrial applications. The system performs both random and sine testing to evaluate product durability under extreme vibration conditions.
- Military equipment survivability testing for munitions, systems, and vehicles
- Defense transportation vehicle vibration analysis
- Aircraft certification and ground vibration testing
- Underwater acoustic range calibration for naval applications
- Product screening and quality control for sensitive equipment
The vibration testing system includes:
- Electrodynamic shaker with 450mm armature diameter
- Precision vibration control system with closed-loop feedback
- Capability for multi-shaker configurations for large payloads
- Compliance with MIL-STD-810 and NATO AECTP-400 standards
- Forced air cooling system for continuous operation
| Model | JQA-502-450 |
| Shaking Table Type | JQ-50 |
| Moving Parts Weight | 50kg |
| Vibration Isolation Frequency | 2.5Hz |
| Power Amplifier Model | PA-50 |
| System Power Consumption | 80KVA |
| Cooling Method | Forced air cooling |
| Fan Model | FJ-5000 |
As a professional manufacturer with over 20 years of experience, we specialize in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment. Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, and GB/T.
Our solutions are widely used in new energy vehicles, aerospace, shipping, electronics, and quality inspection institutions worldwide. With a team of senior R&D engineers and comprehensive after-sales service, we provide high-quality products and one-stop testing solutions.
