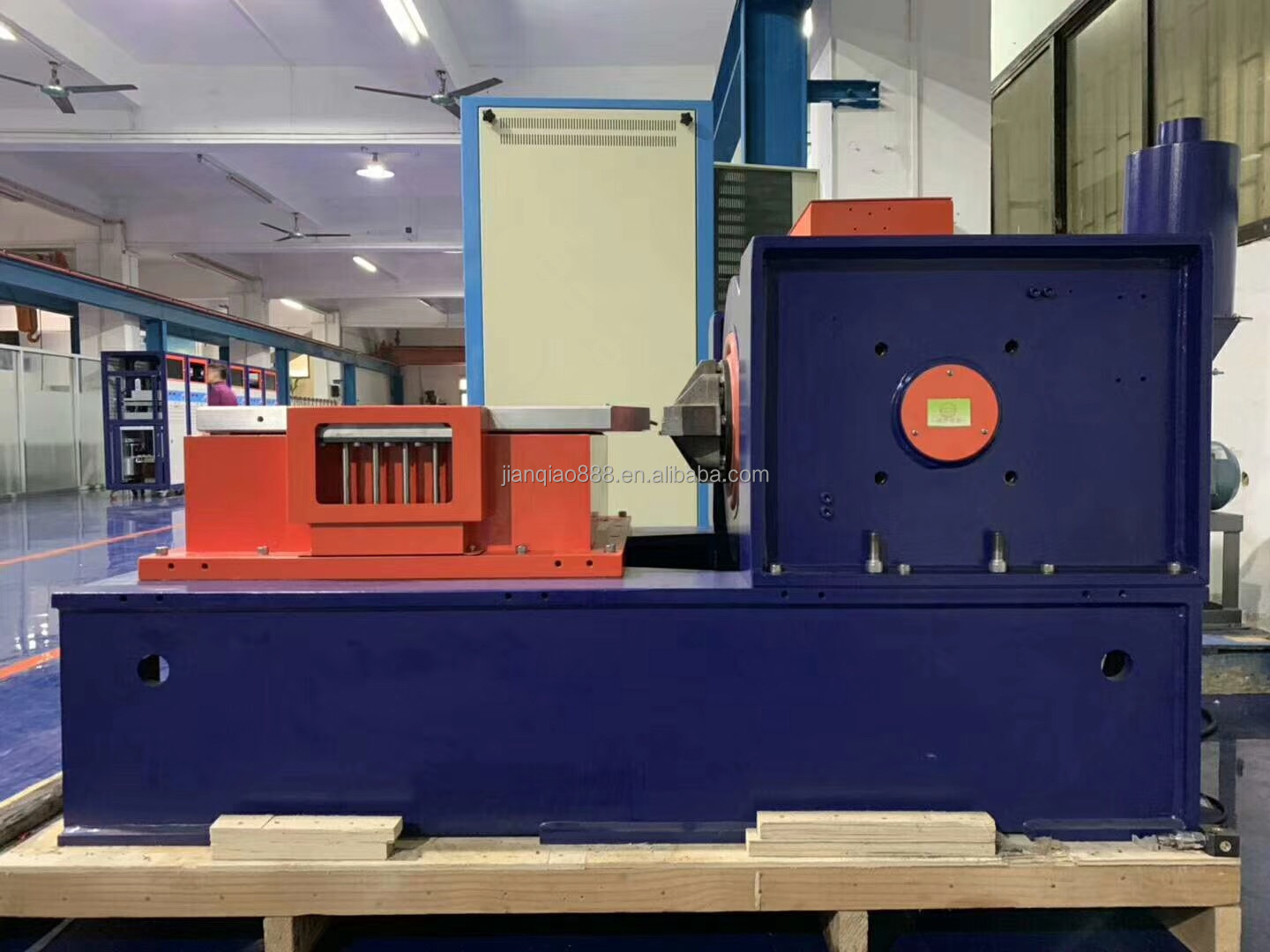

IEC 60068 Vibration Test Machine Shaker System 2m/s Max speed
Product Details
| Frequency: | 2000Hz | Sine Force: | 40kN /4000kg/674.43lbf |
|---|---|---|---|
| Random Force: | 40kN /4000kg/674.43lbf | Shock Force: | 80kN /8000kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 500KG |
| Moving Parts Mass: | 40KG | Armature Diameter: | 440mm |
| Highlight |
Vibration Test Machine IEC 60068,Vibration Test Machine 2m/s,IEC 60068 Vibration Shaker System |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 40kN /4000kg/674.43lbf |
| Random force | 40kN /4000kg/674.43lbf |
| Shock force | 80kN /8000kg/1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 500KG |
| Moving parts mass | 40KG |
| Armature diameter | 440mm |
IEC 60068-2 is a subset of the broader IEC 60068 series, which sets out international test standards for various environmental tests on products, equipment, and components. Included within the IEC 60068-2 series are the vibration test standards:
- IEC 60068-2-6 Environmental testing Part 2-6: Test Fc: Vibration (sinusoidal)
- IEC 60068-2-64 Environmental testing Part 2-64: Test Fh: Vibration, Broadband Random, and Guidance
- All products will likely experience some vibration during their lifetime from shipping and transportation.
- Results from vibration testing to IEC 60068-2-6 and IEC 60068-2-64 are accepted worldwide.
- Evaluate the reliability and performance of products exposed to vibration environments.
- Assess durability of connectors exposed to harsh conditions (military, automotive, space).
- Validate structural integrity and identify possible degradation under vibration.
- Evaluate reliability of automotive and aerospace components subjected to vibration.
- Investigate structural dynamic characteristics for spacecraft programs.
- Simulate product life cycle stresses for performance validation.
This standard defines procedures for testing specimens to sinusoidal vibrations over specified frequency ranges and durations. It applies to products subjected to harmonic vibrations in ships, aircraft, vehicles, machinery, and space applications.
The specification covers test parameter control, vibration amplitudes, frequency ranges, and durations. Users select appropriate test severities for their products, with guidance provided in Annexes A-C.
This procedure tests components, products and equipment to broadband random vibration over specified frequency ranges. It's primarily for unpackaged specimens but can test packaged products for transportation vibrations.
The standard includes requirements for controlling test parameters and lists various test severities. Users select appropriate test conditions and can perform optional low-level vibration response investigations.
| Model | JQA-202-335 / JQA-203-335 |
|---|---|
| Frequency Range (Hz) | 5~3000 |
| Rated sinusoidal force (KN) | 20 |
| Shock force (KN) | 40/60✱ |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51/76 |
| Max. load (kg) | 300 |
| Vibration isolation frequency (Hz) | 2.5 |
We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With over 20 years of experience, we provide high-quality products and one-stop solutions for top enterprises and end users worldwide.
Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB and are widely used in new energy vehicles, aerospace, shipping, electronics and scientific research.
