Steel Structure Horizontal Slip Table For Three Direction Vibration Testing

Brand Name:	JIANQIAO
Model Number:	SL-2020
MOQ:	1
Delivery Time:	5 WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Multi-Axis Testing

Work Environment:

Temperature Range5~35℃, Humidity Range ≤90&(not Condensing)

Structure Material:

Steel Structure

Model:

JV Series

Slip Table Types:

Hydrostatic Bearing / Mechanical Bearing / Mono-base

Applications:

Automotive, Aerospace, Electronics And Packaging

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Horizontal Slip Table

Three Direction Slip Table

Product Description

Slip Table for Vibration Shaker System

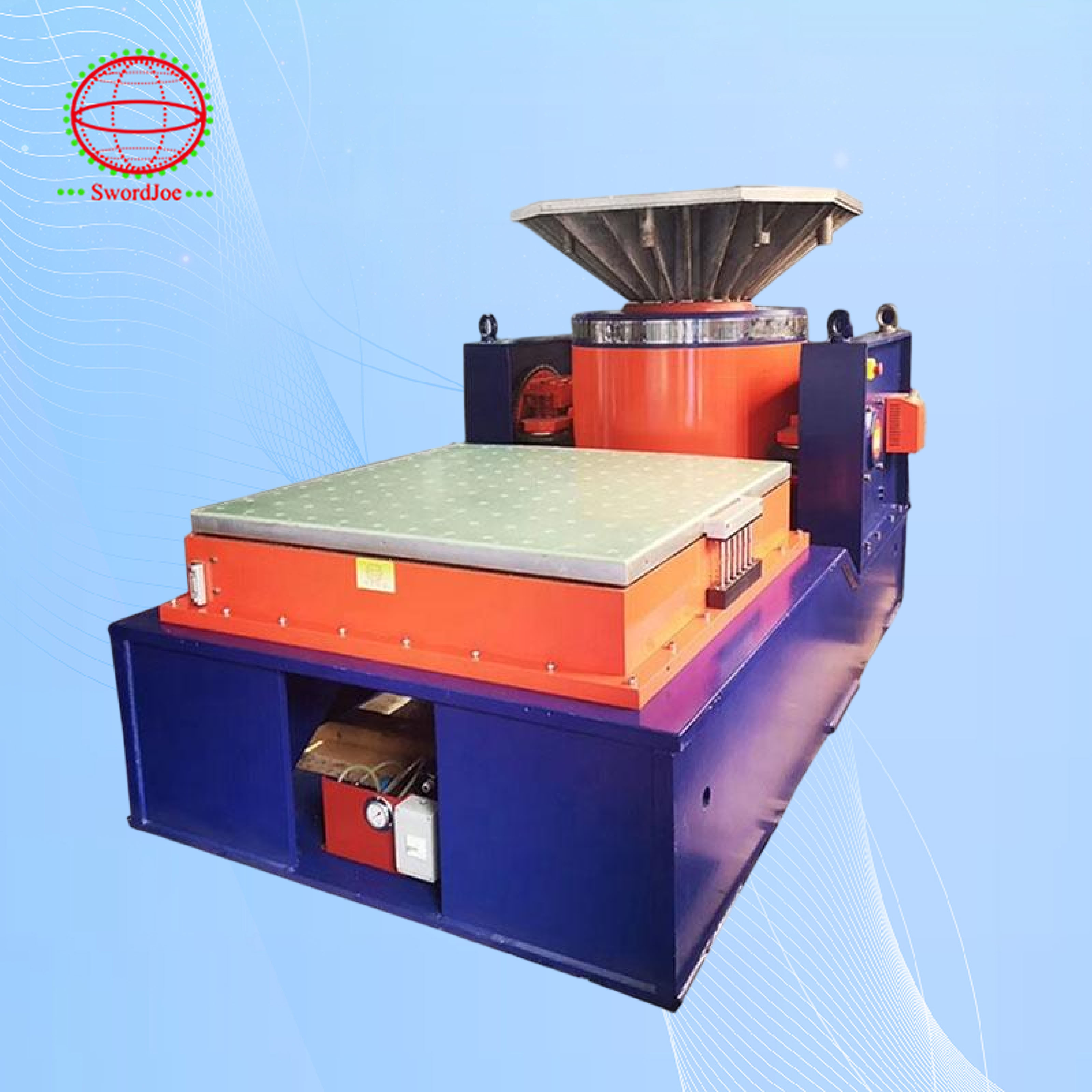

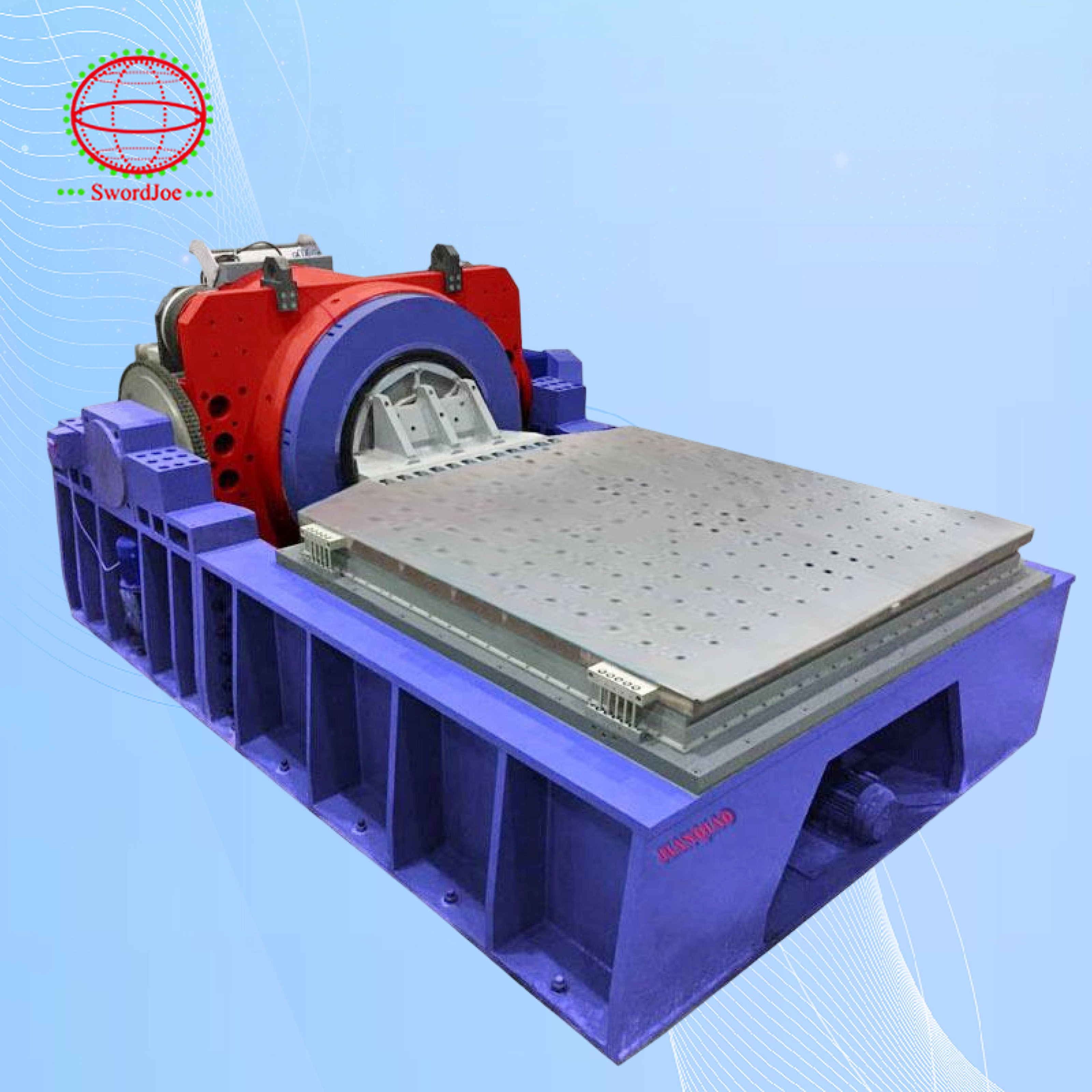

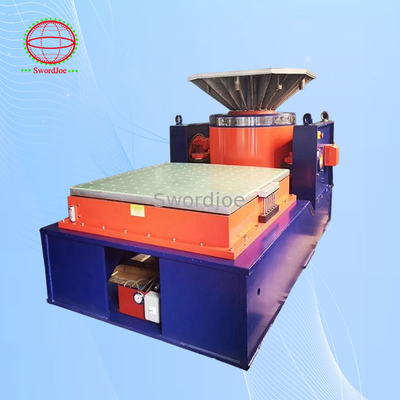

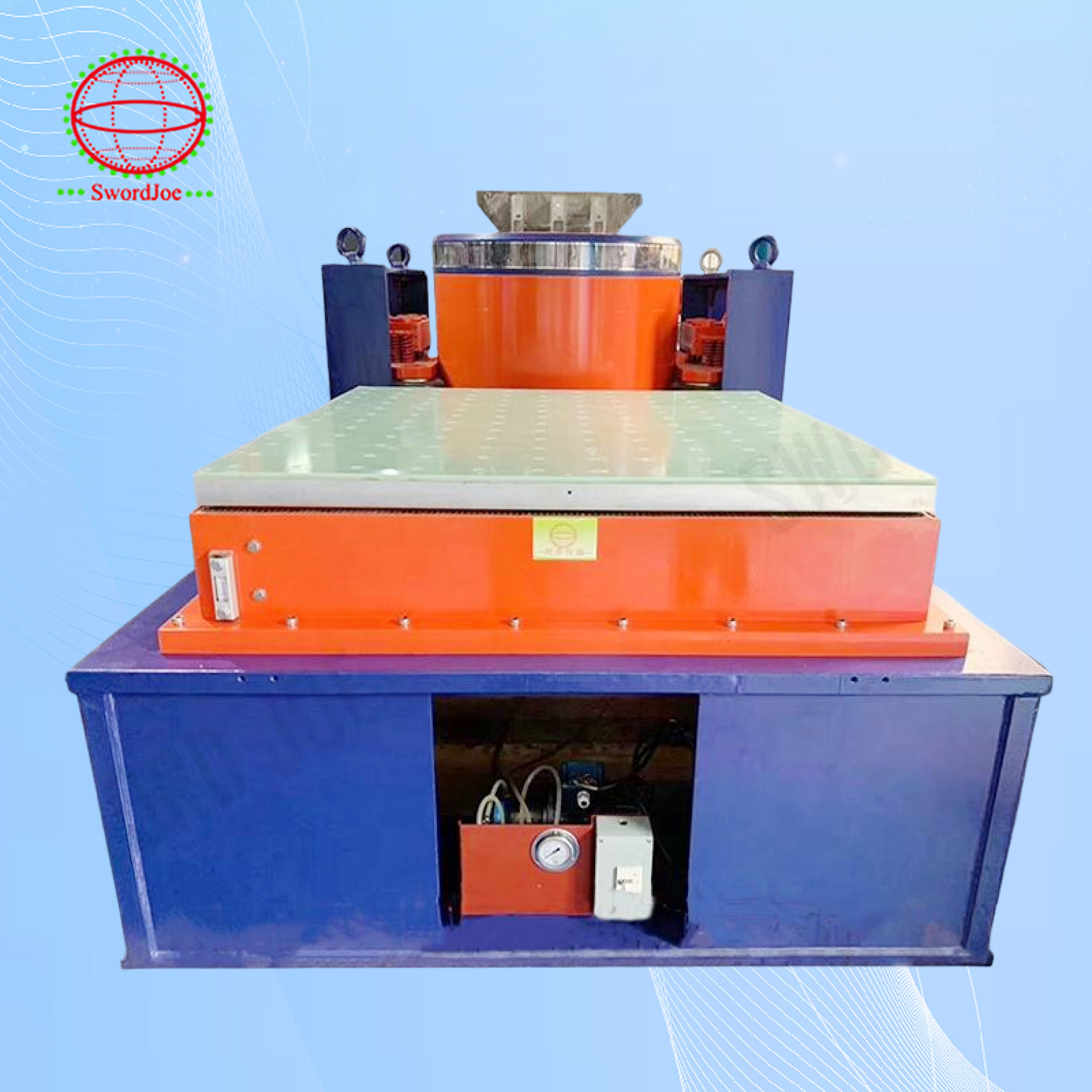

The vibration test machine is equipped with a horizontal slip table designed for three-direction (X, Y, Z axes) vibration testing. This slip table enhances load capacity while maintaining a small counter mass, supporting larger sizes and heavier loads. Available in JV, JB, and JT series based on guiding method, the slip table can be paired with any shaker to create an optimal horizontal testing platform.

Key Features

Steel structure base designed for integrated performance
Precision natural granite and high-quality guide bearings
Reinforced welded platform with excellent reaction quality
Built-in vibration isolation system reduces ground propagation
Modular joint design for flexible configuration

JB Series - Hydrostatic Bearing Guide

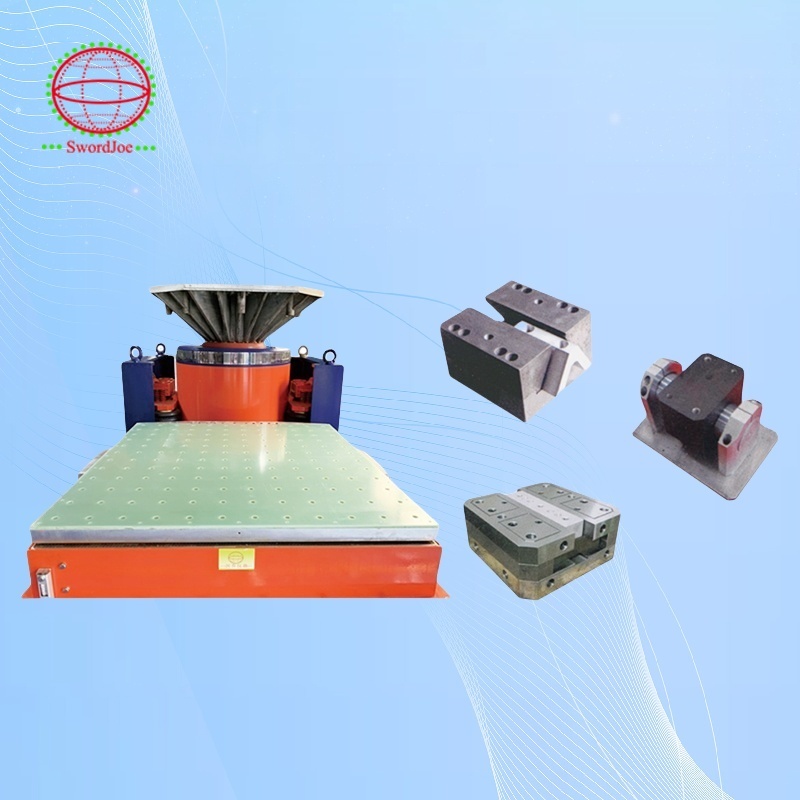

The Hydrostatic Bearing Slip Table features a slip table plate, hydrostatic bearings, driver bar, granite plate, base, and independent static pressure oil source. Hydrostatic bearings provide superior resistance to overturning, making them ideal for large load specimens. Increased bearing count enhances anti-overturning moment capacity.

JT Series - Medium Pressure Bearing Guide

The medium-pressure bearing slip table includes a slip table plate, medium-pressure bearings, driver bar, base, and independent medium-pressure oil source. These bearings offer exceptional dynamic performance with individual feedback systems, ensuring parallel performance and meeting high-performance requirements (800×800 or larger tables available).

JV Series - V Type Bearing Guide

The V-bearing Slip Table consists of a slip table plate, V-shaped bearings, driver bar, granite slab, base, and built-in oil source. Its compact design features a built-in oil supply pump for easy operation. V-bearings provide high anti-overturning moment, with quantity determined by table size.

Model	JV-03KN	JV-06KN	JV-10KN	JV-20KN	JV-30KN	JV-40KN
SL0303 (300×300)	30
SL0404 (400×400)	30	30
SL0505 (500×500)	30	30	40	40	45	45
SL0606 (600×600)	40	40	40	40	45	45
SL0707 (700×700)	45	45	45	45	45	45
SL0808 (800×800)		45	45	45	45	45
SL0909 (900×900)		45	45	45	50	50
SL1010 (1000×1000)		45	45	45	50	50

Operating Conditions

Temperature range: 5~35℃, Humidity range: ≤90% (non-condensing)

Important Notes

The equivalent mass of moving parts includes slip table, joint, V-rail, and drive rod (excluding moving coil mass)
Frequency limit: 2000Hz
Standard equivalent mass values represent conventional designs. Special requirements may necessitate recalculation
