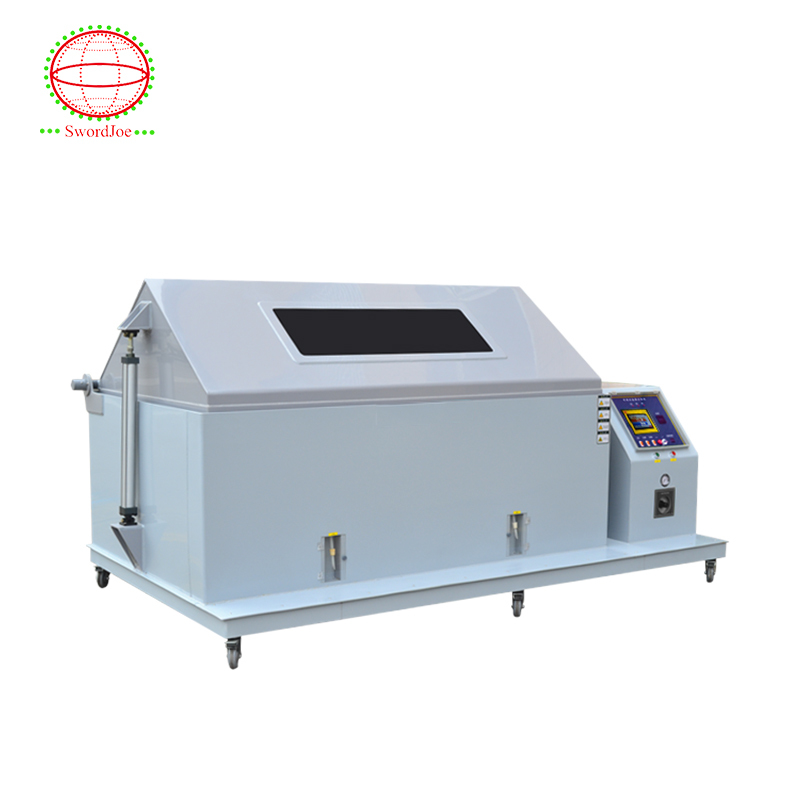

Accurate Salt Spray Testing Chamber Volume 108L 270L 480L 800L 1440L

 Model

JQ-60A/B

JQ-90A/B

JQ-120A/B

JQ-160A/B

JQ-200A/B

Chamber inner  size
W*D*H (mm)

600*400*450

900*500*600

1200*500*800

1600*500*1000

2000*600*1200

Chamber outer  size
W*D*H (mm)

1150*1090*672

1450*1200*842

2080*1258*1240

2480*1520*1450

2900*1550*1650

Chamber temperature

Salt water test method (NSS ACSS) 35 ° C ± 1 ° C /

 corrosion resistance test method (CASS) 50 ° C ± 0.1 ° C

Pressure tank temperature

Salt water test method (NSS ACSS) 47 ° C ± 1 ° C /

 corrosion resistance test method (CASS) 63 ° C ± 0.1 ° C

Chamber volume

108L

270L

480L

800L

1440L

Solvent tank volume

15L

25L

40L

40L

40L

Saline concentration

Add 0.26 g of copper chloride per liter in 5% sodium chloride solution

or 5% sodium chloride solution

Compressed air pressure

1.00±0.01kgf/ cm²

Amount of spray

1.0~2.0ml/80 cm²/h
Collect at least 16 hours, take the average

pH value

6.5~7.2  (NSS ACSS)   3.0~3.2  (CASS)

Spray method

  Continuous spray / Optional intermittent spray

power

AC220V1 10A

AC220V1 15A

AC220V1 20A

AC220V1 20A

AC220V1 30A
