High Performance Salt Spray Test Chamber For Surface Processing Evaluation

Tags

salt spray test chamber with warranty

corrosion test chamber for metals

salt fog test chamber industrial

Product Details

Temperature: 5°C To +28°C Humidity: ≤85% RH
Power Supply: AC380V (±10%)/50Hz Name: Salt Spray Test Chamber
Power Cord Length: 5 Meters Compressed Air Pressure: 1.00±0.01kgf/ Cm²
Highlight

Surface Salt Spray Test Chamber

,

electroplates Salt Spray Test Chamber

Product Description

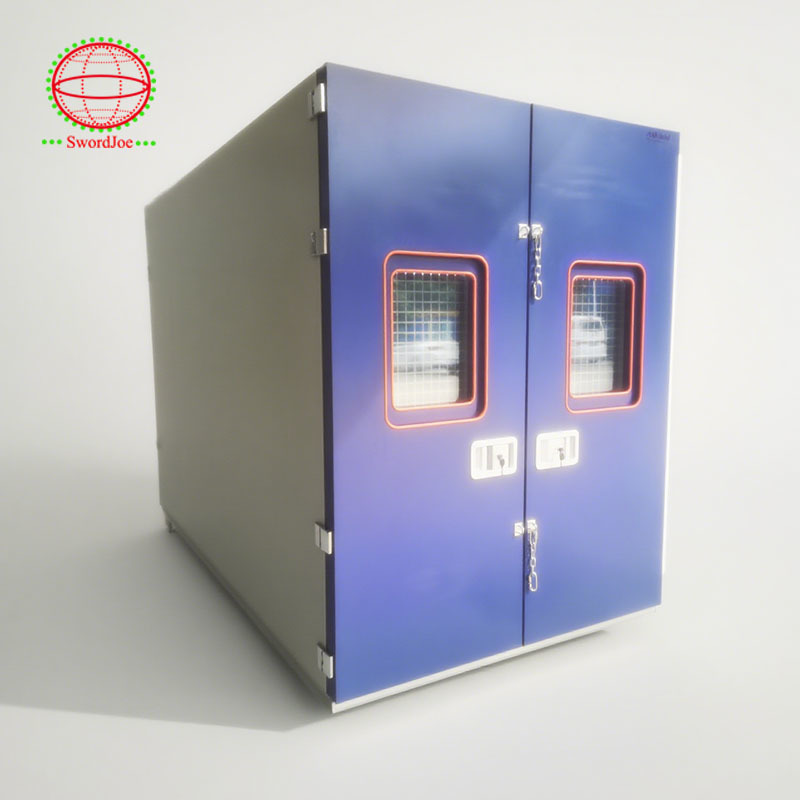

Salt Spray Test Chamber
The walk-in salt spray chamber is designed for surface processing evaluation of various materials including paints, electroplates, inorganic coatings, and anti-rust oils. It tests corrosion resistance across multiple industries including aerospace, automotive electronics, electrical components, mobile devices, plastic products, and metal materials.
Equipment Operating Conditions
Environmental Requirements:
  • Temperature: 5°C to +28°C
  • Humidity: ≤85% RH
  • Ventilation: Well-ventilated space (recommended separate room with exhaust fan)
  • Drainage: Wastewater outlet within 1 meter distance
Utility Requirements:
  • Air supply: Pressure >0.4MPa, rated displacement >2m³/min
  • Power supply: AC380V (±10%)/50Hz; 3-phase 5-wire; Capacity: ~15kW
  • Water supply: Tap water access for chamber cleaning (distilled/deionized water also acceptable)
Key Features
1. Test Chamber Body
Constructed with 80°C-resistant PP plates forming a sealed test space. The composite structure features:
  • Automatic temperature insulation within specified range
  • 110-120° roof angle for proper salt spray distribution
  • Leak-proof design with specially sealed doors
  • Factory-preassembled modular construction
2. Heating System
Utilizes corrosion-resistant titanium alloy heating tubes for uniform chamber temperature distribution.
3. Air Supply System
Two-stage pressure regulation (0.2-0.3MPa → 0.07-0.14MPa) with stainless steel air saturator featuring:
  • Automatic water replenishment system
  • Pressure vessel (3kg resistance)
  • Water level monitoring and control
  • PU pressure-resistant piping
4. Salt Water Supply System
Continuous automatic replenishment with temperature-controlled PVC containers and specialized heaters.
5. Spray System
Japanese patent non-crystallization spray nozzle with baffle atomization technology and salt water recovery system.
6. Control System
7-inch LCD touch screen controller with:
  • Two control modes (constant/program)
  • PT100 sensor input
  • PID control output (4-20mA)
  • 120 programmable test sequences
  • Chinese/English interface
Controls chamber temperature, saturator temperature, salt water temperature, and spray cycles.
Safety Features
  • Overtemperature protection
  • Water shortage alarm
  • Power failure alarm
  • Door status monitoring
Compliance Standards
  • GB/T 2423.18-2000
  • GB/T 6461-2002
  • GB/T 12967.3-91 CASS
  • GB/T 5170.8-2008
  • GB/T 5170.11-2008
  • GJB 150.11A-2008
  • GB/T 2423.17-2008
  • GB/T 10587-2006
  • QB/T 3828-1999
  • ASTM.B117-2009
  • JIS H8502
  • IEC 60068-2-11-1981
  • IEC 68-2-52 1996
  • ISO 9227-2006
  • CNS 8886-2002
  • CNS 4159
  • CNS 4158
Product Images
High Performance Salt Spray Test Chamber For Surface Processing Evaluation 0 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 1 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 2 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 3 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 4 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 5 High Performance Salt Spray Test Chamber For Surface Processing Evaluation 6

Product Highlights

Salt Spray Test Chamber The walk-in salt spray chamber is designed for surface processing evaluation of various materials including paints, electroplates, inorganic coatings, and anti-rust oils. It tests corrosion resistance across multiple industries including aerospace, automotive electronics, ...
