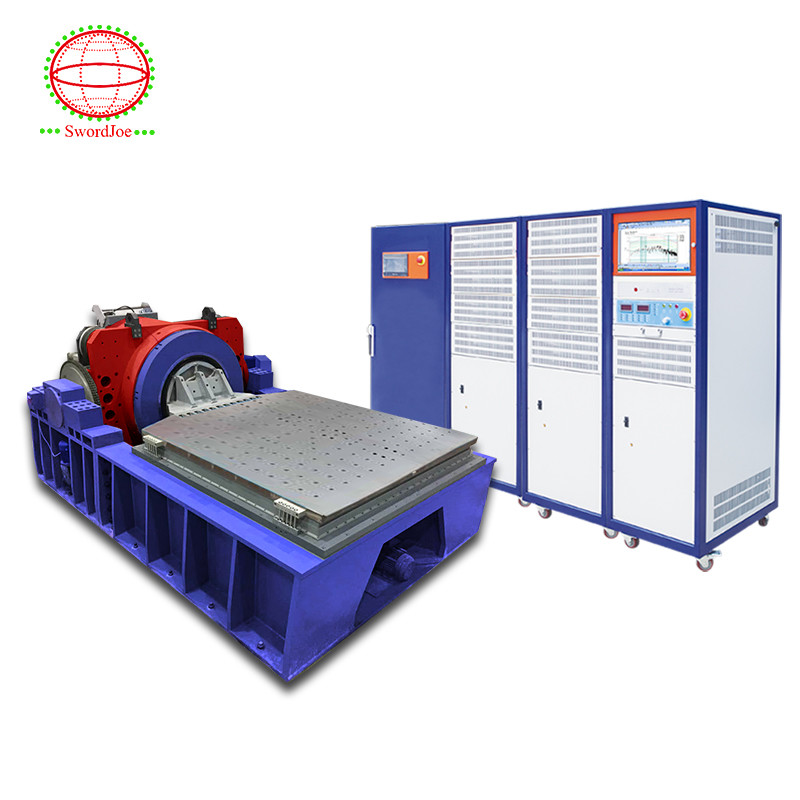

Electro Dynamic Vibration Test Table AC 380V Water Cooled 51mm / 76mm Amplitude

The Water-cooled Electro-Dynamic Vibration Test Table has large thrust force , strong carrying capacity and high cooling efficiency. Tri-axial sinusoidal vibration tests, broadband random vibration tests, and classical shock test like (half sine wave , trapezoidal wave , post-peak wave ) pulse and shock response spectrum tests can be performed separately. The climate chamber can be configured to complete a multi-environment comprehensive test with temperature and humididty  environmental test . There are currently varied models of shakers available in this range. The excitation force ranges from 50kN to 400kN and the maximum load ranges from 800kg to 6000kg.

Performance characteristics

1 Random and sinusoidal excitation force: 1:1
2 Twice the sinusoidal impact (optional three times)
3 Displacement peak-to-peak: 51mm, 76mm or 100mm
4 The moving coil is light in weight and the work surface is large.
5 The air spring of the trunnion has good vibration isolation effect.
6 Dual magnetic circuit design, low magnetic flux leakage, uniform magnetic field.
7 Configuration of electric steering device when switching between horizontal and vertical.

Product Features

● High-strength moving coil skeleton structure design to improve the dynamic structure strength
● New design of cooling short-circuit ring to improve cooling efficiency
● The moving coil winding is wound by the latest insulation reinforcing material
● Secondary-circulating water cooling system with better cooling effect
● Parallel waterway design, improve cooling efficiency, reduce cooling water temperature
● Linear bearing air spring trunnion vibration isolation, with excellent  guiding ability.
● Upper and lower roller guiding structurecan be guided by hydro-static bearing,

System performance

◎ Excellent random performance, 3 sigma rated peak current conforms to ISO standard

◎ Moving coil diameter range from 450 mm (17.7 inches) to 870 mm ( 34 inches)

◎ Compatible with any vibration controller

◎ System operation is convenient

◎ Test frequency up to 5,000Hz
