8 - 56 kVA Switch Mode Power Amplifier For Vibration Test Machine

1
MOQ
8 - 56 kVA Switch Mode Power Amplifier For Vibration Test Machine
Features Gallery Product Description Chat Now
Features
Specifications
Power Output: 8 To 56 KVA Range
Control: Optional Remote Panel (200m Range)
Interface: Microprocessor Control With LCD Display
Efficiency: Over 90% Energy-efficient
Power Supply: 1~ / N / PE 230 V±5% 50/60 Hz, CEE 7/7
Voltage/Current Mode: Yes/Yes
Highlight:

56 kVA Switch Mode Power Amplifier

,

8 kVA Switch Mode Power Amplifier
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQ
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5 weeks
Payment Terms: T/T
Supply Ability: 300 set/year
Product Description

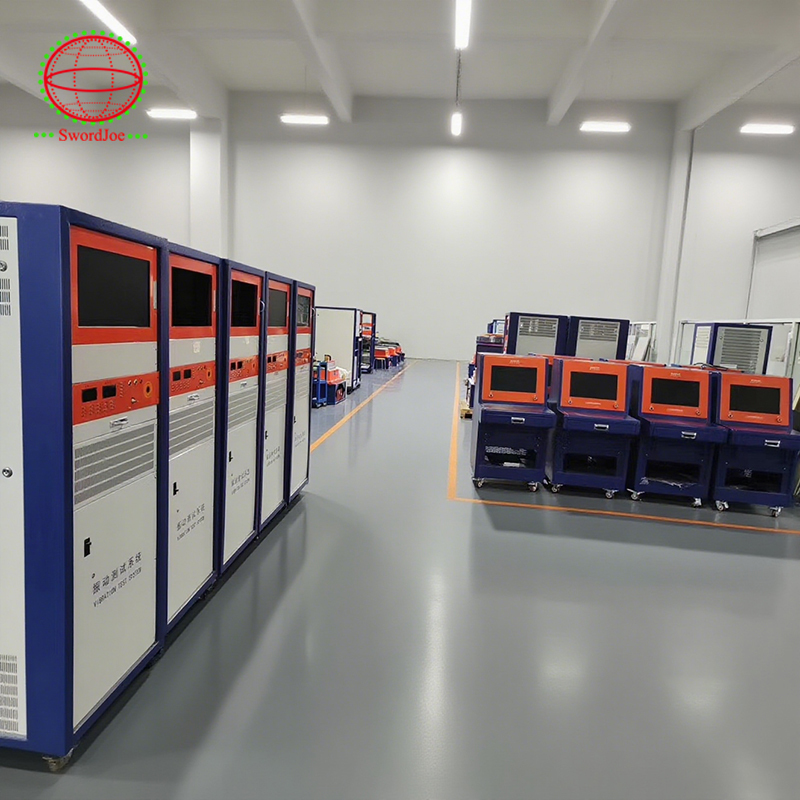

Power Amplifier for Vibration Test Machine
Available with outputs ranging from 8 to 56 kVA, these switch-mode power amplifiers are designed to drive electrodynamic shakers with force ratings of at least 9.81 kN (2205 lbf). The LDS SPA-K series offers Class-D rated performance, delivering maximum power with minimal energy waste for lower operating costs.
Contact Sales
These switching power amplifiers are engineered for medium-force vibration test systems. Their modular and scalable design allows for easy, economical power capacity expansion to meet future needs without complete unit replacement. The system maintains operation at reduced capacity during module failures.
Use Scenarios
  • Driving medium-force shakers
  • Powering third-party shakers with ratings ≥ 9.81 kN (2205 lbf)
Key Characteristics
  • Power output: 8 to 56 kVA range
  • Scalability: Upratable in 8 kVA increments
  • Efficiency: Over 90% energy-efficient
  • Performance: Full-power frequency range with low distortion
  • Bandwidth: 20Hz to 3kHz @ -3dB
  • Signal quality: SNR better than -68dB
  • Current rating: 3-sigma to ISO standards
  • Control: Optional remote panel (200m range)
  • Safety: Comprehensive monitoring and protection systems
  • Interface: Microprocessor control with LCD display
  • Software: PC-based control integrates amplifier and vibration controller
