Precise Battery Thermal Cycling Tester For Battery Temperature And Humidity Test

Detail Information

Product Description

Detail Information

Temperature Stability:

±1.0°C

Cooling Method:

Air Cooling

Recording Frequency:

Up To 10Hz

Display Method:

Touch Screen Display

Heating Rate:

3-5°C/min

Thd:

<5%

Packaging Details:

Wooden case

Highlight:

Precise Battery Thermal Cycling Tester

Temperature Battery Thermal Cycling Tester

Battery Temperature And Humidity Test

Product Description

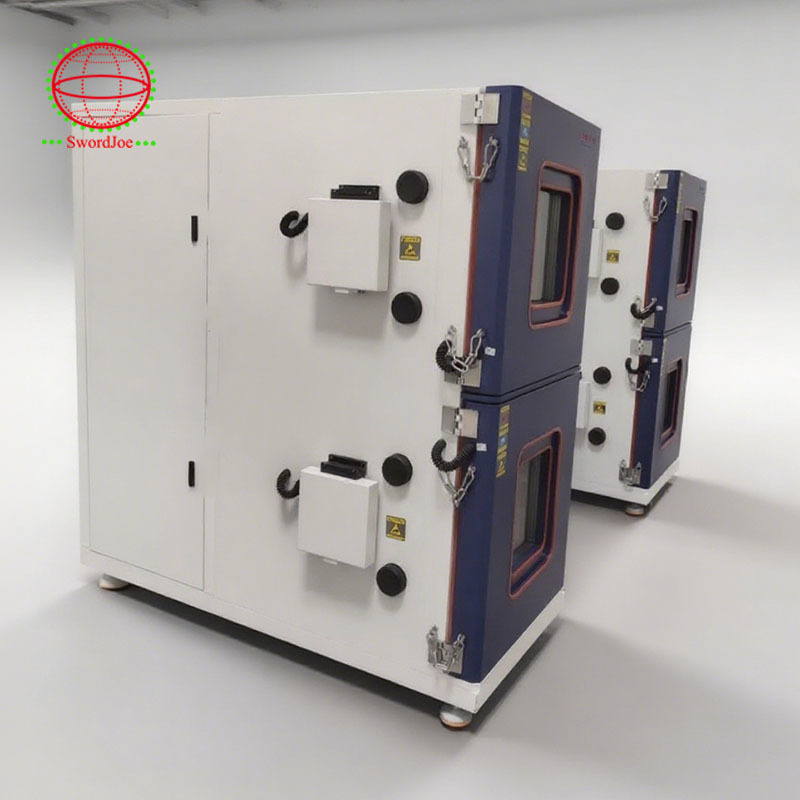

Battery Thermal Cycling Tester

Comprehensive Temperature and Humidity Testing Solution

The Battery Thermal Cycling Tester (also known as Constant Temperature and Humidity Test Chamber) simulates environmental conditions to evaluate battery packs, systems, modules, and cells under varying temperature and humidity conditions.

Key Advantages

Advanced cold-end control technology
Precise measurement reporting
Energy savings up to 35%
Achieves dual 85° capability without compressor startup
Quadruple insulation prevents fogging and dripping
Maintains performance in prolonged low-temperature, high-humidity environments without frosting

Technical Specifications

Model	JQ-100-C	JQ-150-C	JQ-225-C
Internal Dimensions (mm)	400×400×500	500×500×600	600×500×750
External Dimensions (W×D×H)	920×1420×1550	1020×1520×1750	1120×1520×2050
Temperature Range	0°C to 150°C (Type A) -20°C to 150°C (Type B) -40°C to 150°C (Type C) -70°C to 150°C (Type D) Humidity options available
Temperature Uniformity	±1°C
Heating Rate	3-5°C/min
Cooling Rate	0.7-1°C/min
Power Supply	AC220V±5% 50Hz	AC380V±5% 50Hz
Power (kW)	4.5	7	7.5

Advanced Control System

Features a 5.5" color touchscreen controller supporting multiple languages (Chinese, English, Russian). The intuitive interface allows easy program editing while displaying real-time system data, execution status, and automatic fault diagnosis with solution prompts.

Control System Features

PID microcomputer automatic calculation intelligent temperature control
Warm-in force CA(K)TYPE temperature sensor with 12V output
Imported solid-state relay (SSR) for stable current control
Digital timer with automatic temperature cutoff
RS232/RS485 communication (9.6Kbps)
Programmable controller with capacity for 120 programs (100 segments each)

Premium Construction

304# stainless steel 1.2mm interior
Energy-saving refrigeration with electronic expansion valve system
Specialized humidity generation and control
Unique insulation structure for extreme testing
3" cable port with cover, two shelves, and casters
Anti-fog observation window with interior lighting
316L stainless steel finned radiator heating system
PU + glass fiber insulation

Compliance & Standards

Complies with international standards including: IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GB11158, GB10589-89, GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.22-2001, GB10592-89, ISO, ASTM, AATCC, TAPPL, UL, VDE, ANSI, CSA, JIS, BS, EN, DIN, SATRA, GB, CNS.

Applications

Essential for material testing in laboratories, quality control systems, and industries including electronics, metals, power cables, footwear, leather, packaging, construction, petrochemicals, and aerospace.
