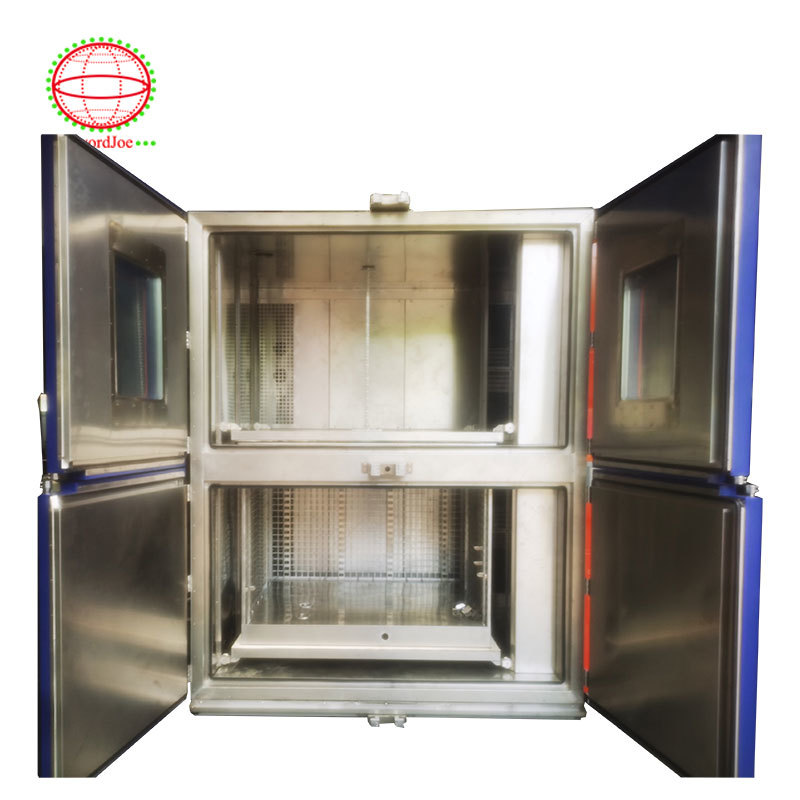

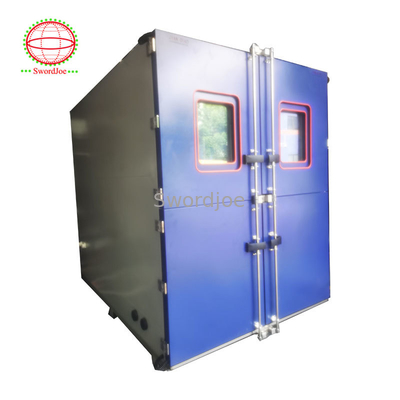

Two Zone Thermal Shock Test Chamber For Aerospace Automotive Electronics
Product Details
| Model: | JQTS-100 | Temperature Range: | -40°C/-55°C/-65°C~+150°C |
|---|---|---|---|
| Highlight |
Two Zone Thermal Shock Test Chamber,Aerospace Thermal Shock Test Chamber,Automotive Thermal Shock Test Chamber |
||
Product Description
| Model | JQTS-100 |
|---|---|
| Temperature Range | -40°C/-55°C/-65°C~+150°C |
- Rapid Temperature Changes: Quick transition between hot and cold extremes
- Controlled Environment: Precise temperature settings and uniformity
- Versatile Testing Cycles: Programmable thermal shock profiles
- Sample Handling: Easy placement and removal mechanisms
- Testing electronic components for thermal reliability
- Evaluating material resistance to thermal stress
- Assessing automotive parts durability
- Ensuring compliance with industry quality standards
| Model | Inner Size (W×D×H cm) | Outer Size (W×D×H cm) | Capacity (L) | Weight (kg) |
|---|---|---|---|---|
| JQTS2-50 | 35×32×40 | 125×160×185 | 50 | 800 |
| JQTS2-80 | 50×40×40 | 135×170×185 | 80 | 900 |
| JQTS2-100 | 50×50×40 | 140×185×190 | 100 | 950 |
| JQTS2-150 | 65×50×46 | 160×190×205 | 150 | 1050 |
| JQTS2-225 | 65×70×50 | 160×230×210 | 225 | 1250 |
| JQTS2-408 | 85×80×60 | 180×250×230 | 408 | 1450 |
| Temperature Shock Range | A: -40℃～180℃ B: -55℃～180℃ C: -65℃～180℃ |
|---|---|
| Shock Types | 1. High Temp.→Low Temp. 2. Low Temp.→High Temp. 3. Normal Temp→High Temp→Normal Temp→Low Temp 4. Normal Temp→High Temp→Normal Temp→Low Temp |
| High Temp. Chamber | +60°C~+200°C |
| Pre-Heating Time | (+20°C～200℃) <35 minutes |
| Low Temp. Chamber | (-40°C/-55°C/-65°C) ~ -10°C |
| Pre-cooling Time | (+20°C～-75℃) <60 minutes |
| Temperature Transfer Time | -40℃/-55°C/-65℃～＋180℃ <5 seconds (Two Zone) |
| Chamber Material | Outer shell: 1.5mm electrolytic plate with baked electrostatic painting Inner shell: 1.2mm thick SUS#304 stainless steel plate (matt treatment) |
|---|---|
| Insulation Material | Glass fibre wool + Rigid polyurethane foam |
| Controller | 7" LCD colorful Chinese/English touch screen (10" optional), 120 programs, 1200 steps, USB, RS232/R485 interface, mobile APP, computer connection remote control |
| Control System | P.I.D + S.S.R + Microcomputer balance temperature control system |
| Cooling Type | Semi-closed two-stage compressor (water cooled) Fully-closed two-stage compressor (air-cooled) |
| Refrigerant | HFC-404a and HFC23 /HFC-R449A/HFC-507 |
| Compressor | Fully closed French "Tecumseh" compressor Semi-closed German "Bock"/"Bitzer" compressor |
| Safety Protection | Fuse free switch, compressor high/low voltage protection, over-temperature protector, over-current protector, refrigerant high-voltage protection, fault alarm system, electronic sound/light alarm |
|---|---|
| Spare Parts | Glass viewing window, two shelves, 2×￠50mm cable ports, casters |
| Power Supply | AC/380V, 50HZ, 20～50A |
