5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber

1
MOQ
5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber
Features Gallery Product Description Chat Now
Features
Specifications
Power Supply: AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire
Working Conditions: RT To 35℃
Control Method: PWM Control
Temp Uniformity: ±2℃(No-load)
Temp Fluctuation: ±0.5℃(No-load)
Temp Range: Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized.
Highlight:

5.5KW Constant Temperature And Humidity Test Chamber

,

100L Constant Temperature And Humidity Test Chamber

,

Constant Temperature Cycle Test Chamber
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQTH-100
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 300 sets /year
Product Description

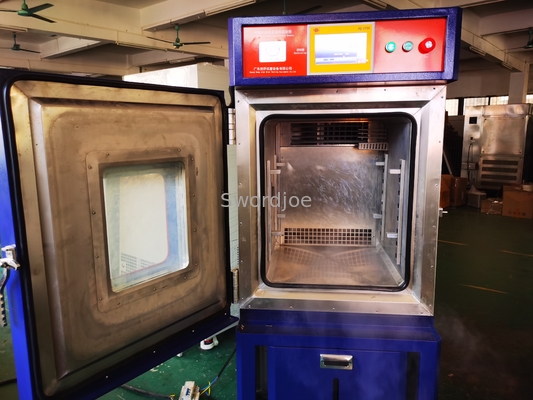

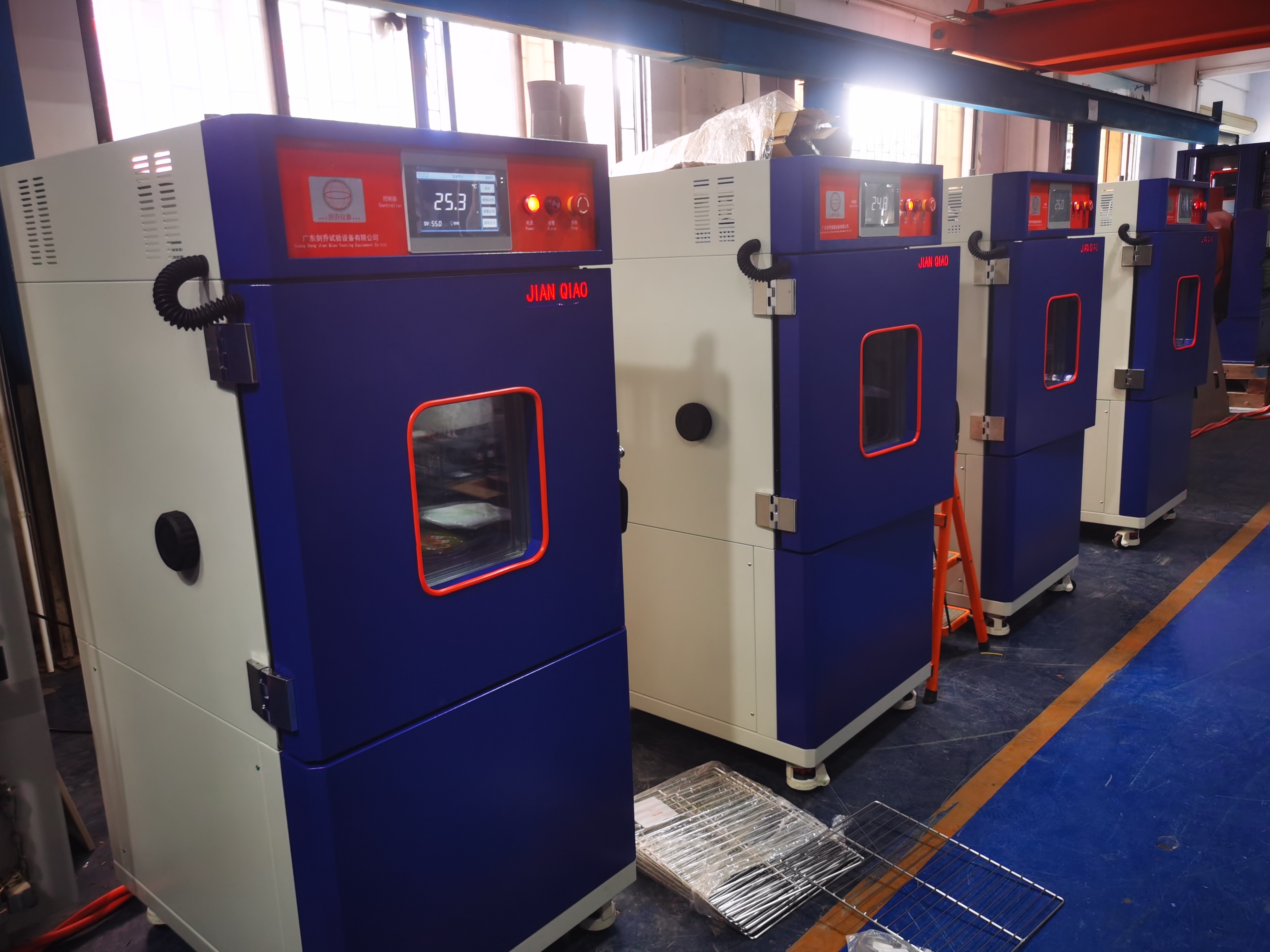

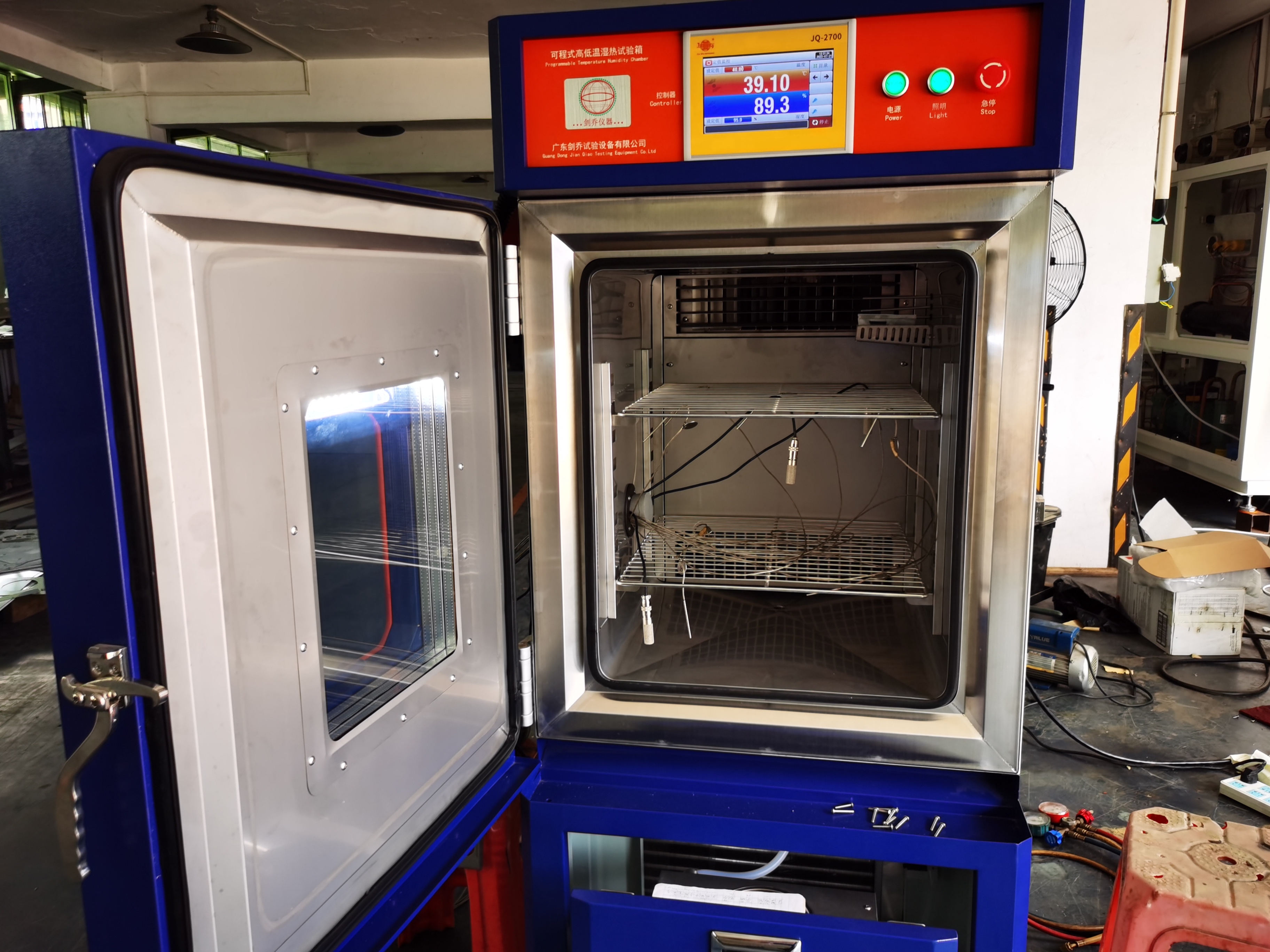

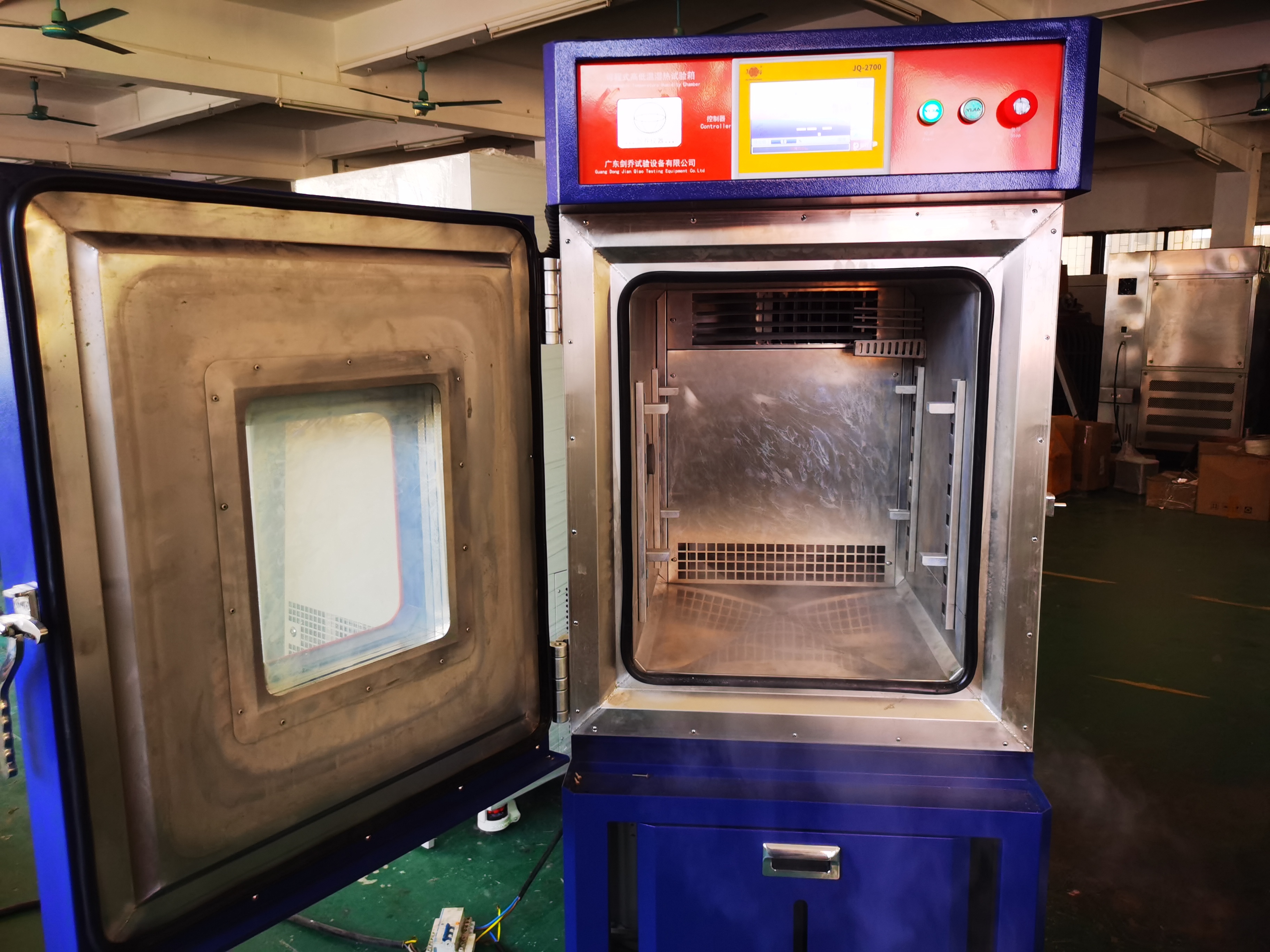

High Temperature Cycle Test Chamber
The constant temperature and humidity test chamber is designed to test material performance under various environmental conditions, evaluating heat resistance, cold resistance, dry resistance, and wet resistance. This essential testing equipment serves industries including electronics, automotive, aerospace, medical, and more.
5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 0 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 1 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 2 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 3 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 4 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 5 5.5KW 100L Constant Temperature And Humidity Test Chamber Temperature Cycle Test Chamber 6
Applications
Ideal for quality testing in electronics, electrical components, mobile devices, communications equipment, automotive parts, plastics, metals, food products, chemicals, building materials, medical equipment, and aerospace components. Used by research institutes, universities, and quality control laboratories.
Compliance Standards
GB/T5170.5-2008, GB/T10586-2006, GB/T2423.1-2008 Test A, GB/T2423.2-2008 Test B, GB/T2423.3-2006 Test Ca, GB/T2423.4-2008 Test Db
Model Specifications
Model Volume (L) Inner Dimensions (W×D×H cm) Outer Dimensions (W×D×H cm) Power Weight (kg)
JQTH-100 100L 50×40×50 70×125×157 5.5KW 300
JQTH-150 150L 50×50×60 70×135×167 6KW 360
JQTH-225 225L 70×46×70 90×157×185 8.5KW 430
JQTH-408 408L 70×75×80 90×188×195 9KW 530
JQTH-800 800L 100×80×100 120×185×215 13.5KW 780
JQTH-1000 1000L 100×100×100 120×205×215 15KW 890
JQTH-1200 1200L 150×80×100 200×135×215 17KW 1100
JQTH-1500 1500L 150×100×100 200×155×215 18KW 1380
Technical Specifications
Temperature Range:
Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Exterior Material:
1.5mm Electrolytic plate with Electrostatic painting
Interior Material:
Matte Stainless steel plate SUS 304
Insulation Material:
Rigid Polyurethane Foam and Glass Fiber Wool
Refrigeration System:
Hermetic Compressor, Cascade Refrigeration (CFC free) using HFC-R404A/HFC-23/HFC-R449/HFC-507
Control Method:
PWM control
Working Conditions:
RT to 35℃
Humidity Range:
10% to 98% RH
Temperature Fluctuation:
±0.5℃ (No-load)
Temperature Uniformity:
±2℃ (No-load)
Cooling Rate:
+150°C to -70°C, 0.8°C to 1℃/min (Non-Linear)
Heating Rate:
-70°C to +150°C, 1°C to 3℃/min (Non-Linear)
Controller:

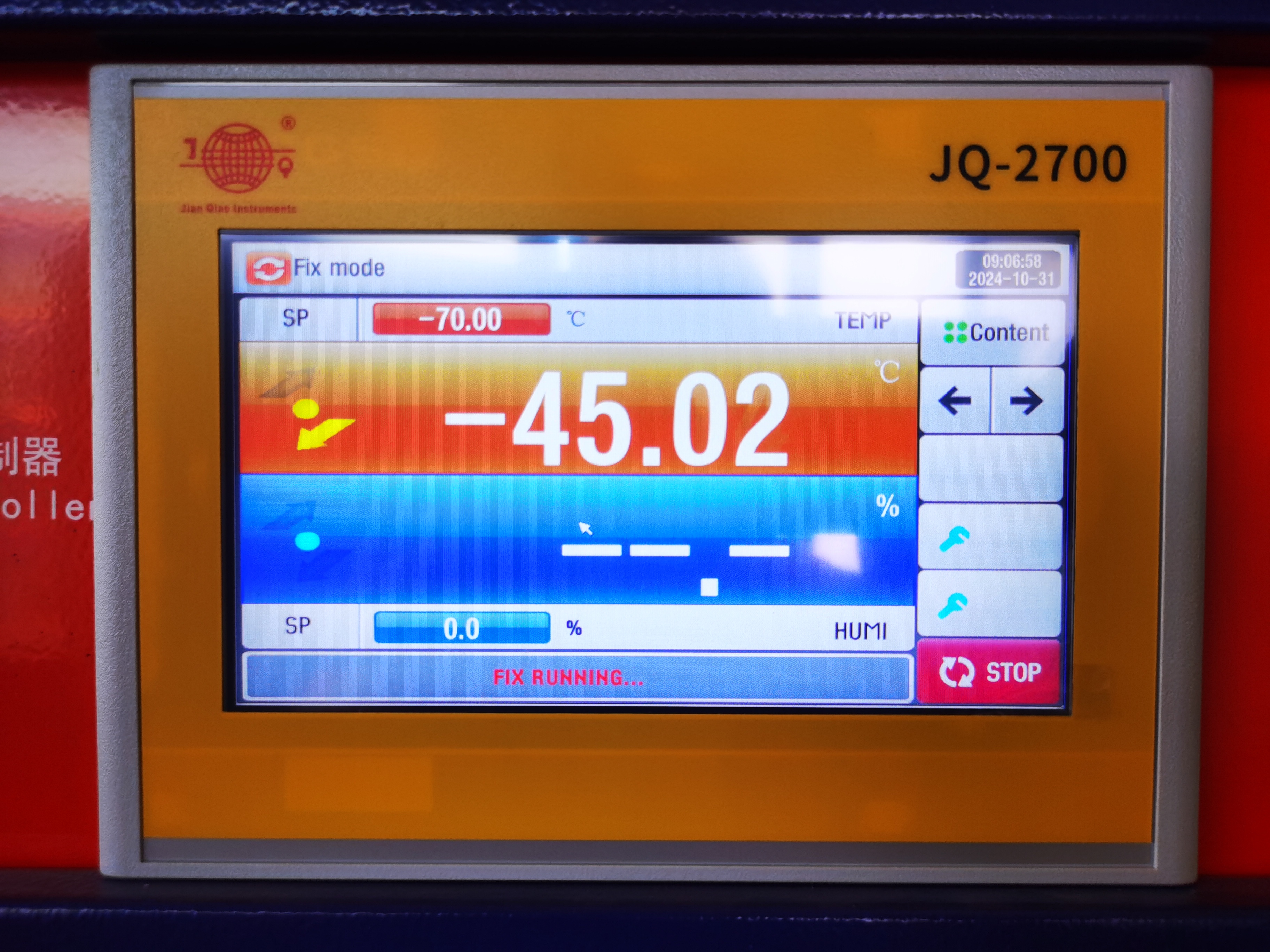

TW DELTA PLC, 7" color touch screen with Chinese/English/Russian menu, Setting Fix/Program operation modes
Standard Accessories:
Observation Window (1), Cable Port (￠50mm×2), Shelves (2), Chamber lamp (1), Power cable (2m)
Safety Features:

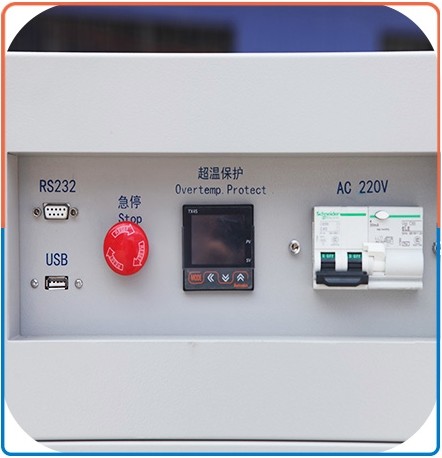

No-Fuse Breaker, Over-pressure/load/current protection for compressor, Over-Temp protection, Over-voltage coolant protection, Fan overload protection, Dry heat protection, Fault warning system, Short of water protection
Configuration Interface:
USB, WLAN, RS232/R485 port (APP function optional)
Power Supply:
AC 220V or AC380V 50Hz 3 PHASE with ground wire
This test chamber provides a controlled environment for product testing and development, significantly reducing development cycles while improving product quality and reliability through rigorous environmental simulation.
