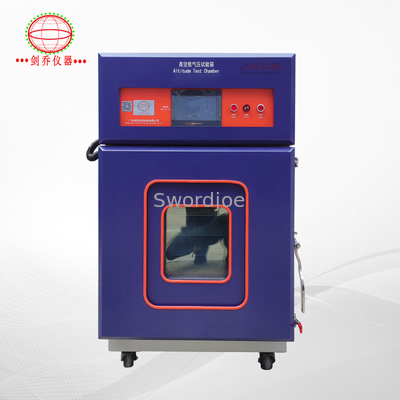

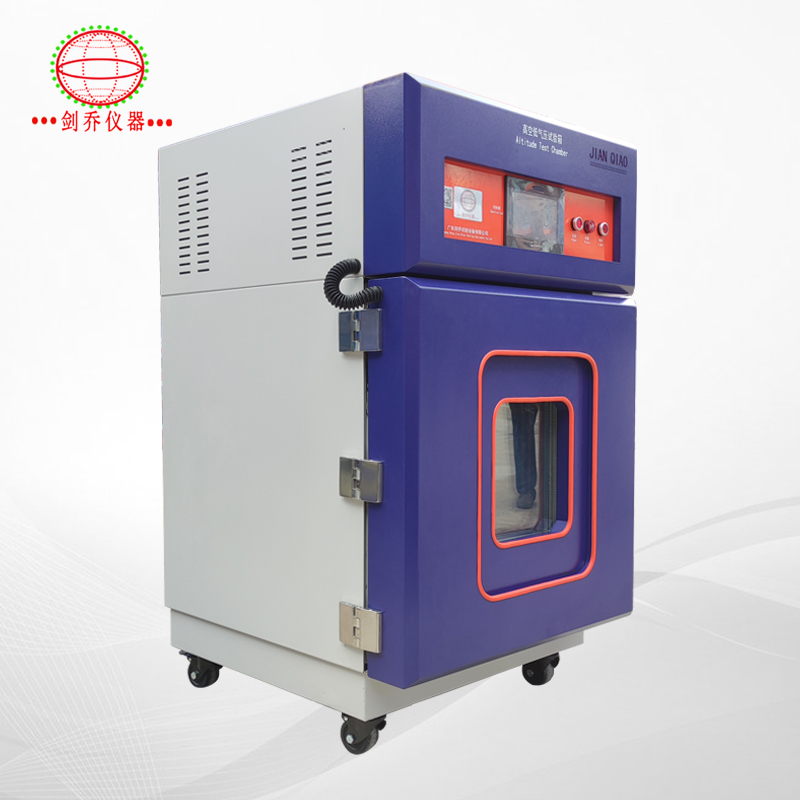

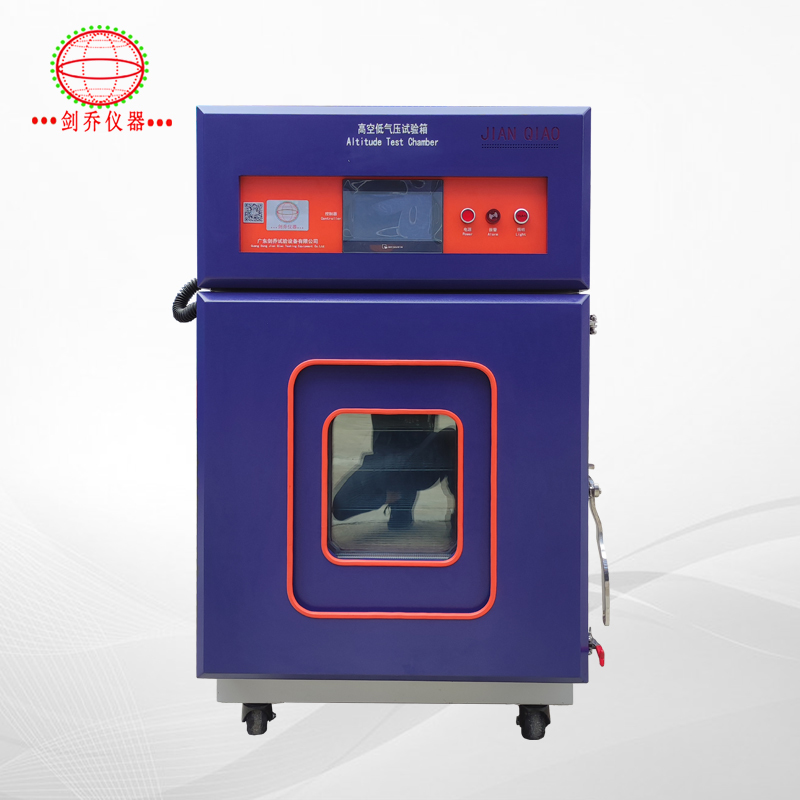

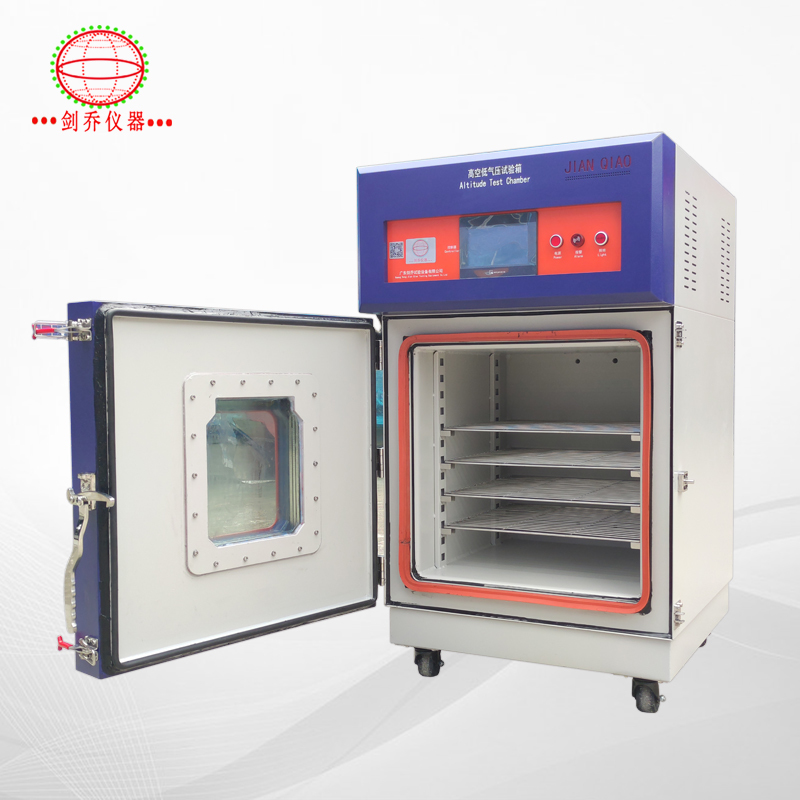

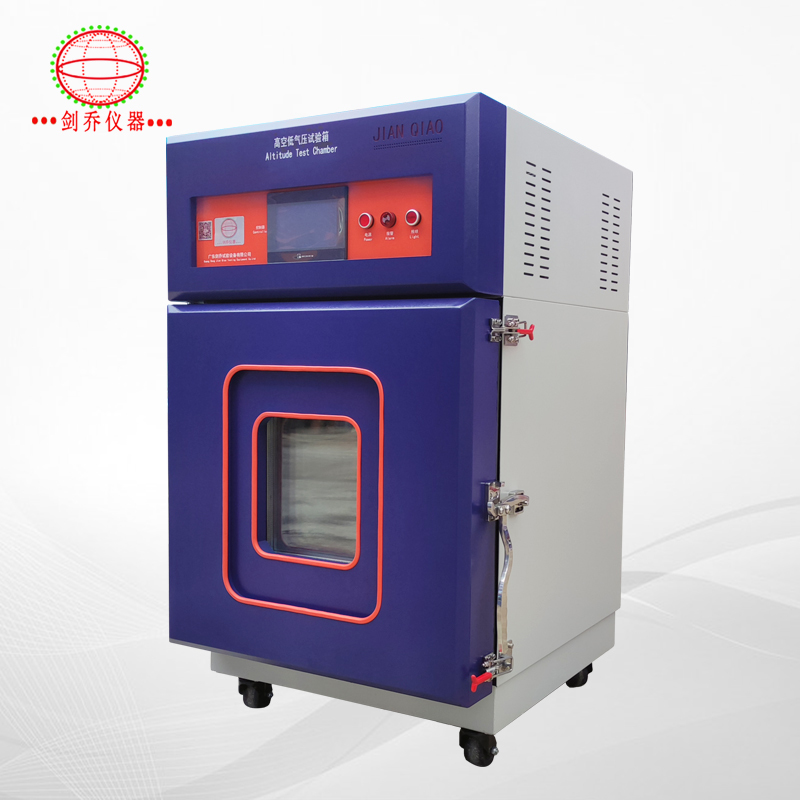

2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
Product Details
| Carton Size: | W940*D780*H1650 | Chamber Inner Material: | SUS 304# Stainless Steel |
|---|---|---|---|
| Maximum Load: | 50KN | Power Comsumption: | 2000W |
| Highlight |
2000W Battery Test Equipment,Battery Test Equipment 50KN,Battery High Altitude Test Chamber |
||
Product Description
The high-altitude low-pressure test machine is used to simulate the detection of battery leakage, shell rupture, fire or explosion in a test environment with a constant temperature or variable temperature (ie high altitude).
Test purposes
Battery low pressure (high altitude) simulation test, all tested samples are tested under a negative pressure of 11.6 kPa (1.68 psi)
Single battery safety test Low air pressure (GB/T 31241-2014)
a) Single battery charging
b) In the low-pressure tank of the single-cell battery method, the air pressure in the test chamber is adjusted to 11.6kpa, the temperature is room temperature, and it is allowed to stand for 6h.
c) Observation 1h
Battery module safety test Low air pressure (GB/T 31485-2015)
a) Battery module charging
b) The battery module is placed in a low-pressure test chamber, and the air pressure in the test chamber is adjusted to 11.6kpa, the temperature is room temperature, and it is allowed to stand for 6h.
c) Observation 1h
|
Model |
Q-8104 (customizable) |
|
Carton size |
W940*D780*H1650 |
|
Chamber inner material |
SUS 304# stainless steel (thickness 6.0mm) |
|
Chamber outter material |
standard 1.2mm electrolytic plate electrostatic spray paint |
|
Air pressure |
11.6Kpa |
|
Measure accuracy |
±1% |
|
Types of |
Fully automatic pressure testing machine, battery simulation high altitude low pressure test chamber |
|
Use |
Battery low pressure (high altitude) simulation test, all tested samples |
|
Weight |
300KG |
|
Maximum load |
50KN |
|
Power supply |
AC 220V 50HZ |
|
Power Comsumption |
2000W |
Product Highlights
The high-altitude low-pressure test machine is used to simulate the detection of battery leakage, shell rupture, fire or explosion in a test environment with a constant temperature or variable temperature (ie high altitude). Test purposes Battery low pressure (high altitude) simulation test, all ...
