| Brand Name: | Jianqiao |
| Model Number: | JQWI-2000 |
| MOQ: | 1 |
| Delivery Time: | 5WEEKS |
| Payment Terms: | T/T |

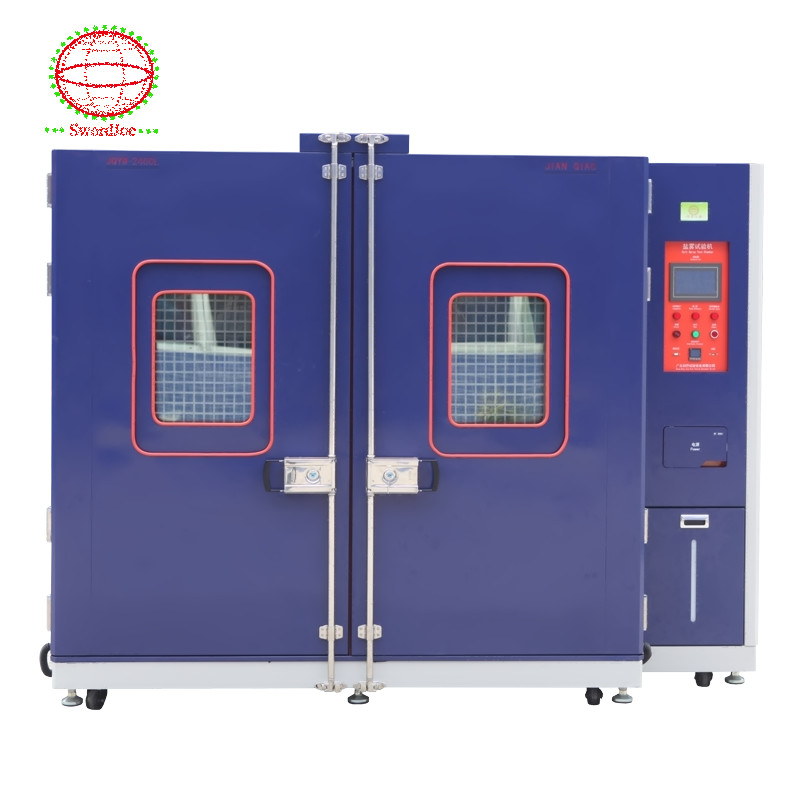

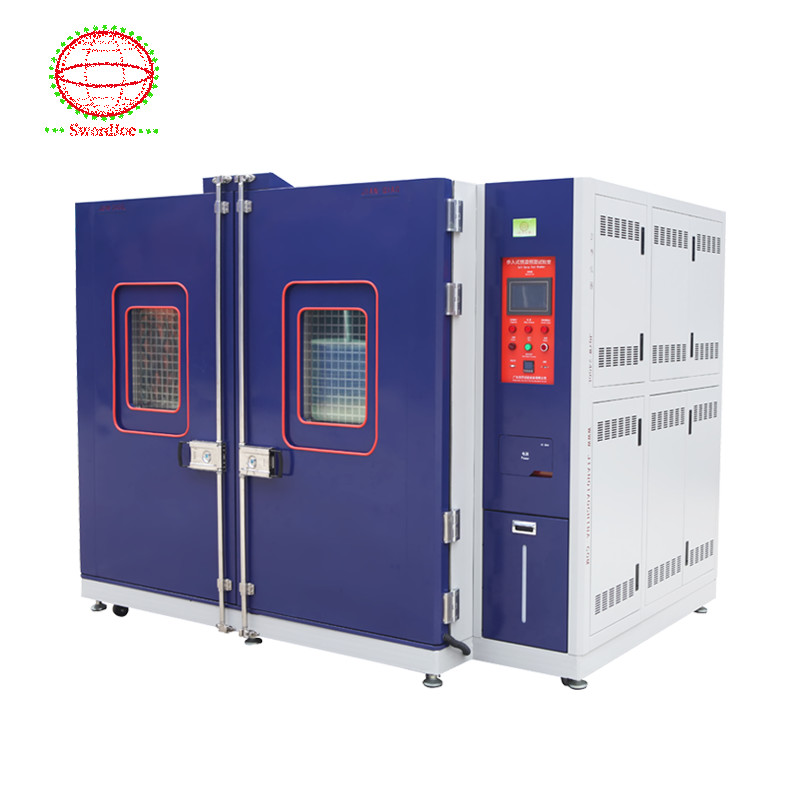

The walk-in constant temperature and humidity chamber simulates specific environmental conditions for automobiles, large components, large semi-finished products and finished products. such as sample evaluation, R&D test production test, accelerated stress test, reliability test, failure analysis, and other applications that require environmental simulation.
Due to the design of the door of the laboratory or the limitation of the placement of the laboratory, large-scale walk-in constant temperature and humidity rooms often face difficulties such as area limitation during installation. In order to solve this problem, Jian Qiao specially designed the two types of panel assembly and solid welded structure chamber to Solve site restrictions.
|
JQWI-08 |
JQWI-12 |
JQWI-16 |
JQWI-25 |
JQWI-34 |
JQWI-40 |
|
|
Inner size (cm) |
200*200*200 |
200*300*200 |
220*350*210 |
300*400*210 |
340*480*220 |
400*500*220 |
|
Outer size (cm) |
230*360*240 |
230*460*240 |
246*520*250 |
330*560*250 |
370*660*270 |
430*660*270 |
|
Volume (L) |
8.0m³ |
12m³ |
16m³ |
25m³ |
34m³ |
40m³ |
|
Temp.Range |
-70℃/-40℃~85℃/120℃/150℃/180℃ customized |
|||||
|
Humidity range |
20 % to 98% RH |
|||||
|
Temp Fluctuation |
±0.5℃ |
|||||
|
Temp variation in space |
±2℃ |
|||||
|
Temp cooling rate |
1℃/min or customized |
|||||
|
Temp rising rate |
3℃/min or customized |
|||||
|
weight(kg) |
Subject to the actual weight |
|||||
|
Exterior material |
Standard color steel plate for walk in chamber/cold-roll steel sheets with coating /Laminating metal sheet |
|||||
|
Interior material |
Stainless steel plate sus304 |
|||||
|
Floor load resistance |
customized |
|||||
|
Door |
PWM control temp of cold -end |
|||||
|
Controller |
TW DELTA PLC,7 " or 10" color touch screen control |
|||||
|
Configuration interface |
With USB , WLAN, RS232 port , APP function is optional |
|||||
|
Compressor |
French Tecumseh or Germany Bitzer brand or Bock |
|||||
|
Power supply |
AC380V @50Hz |
|||||
