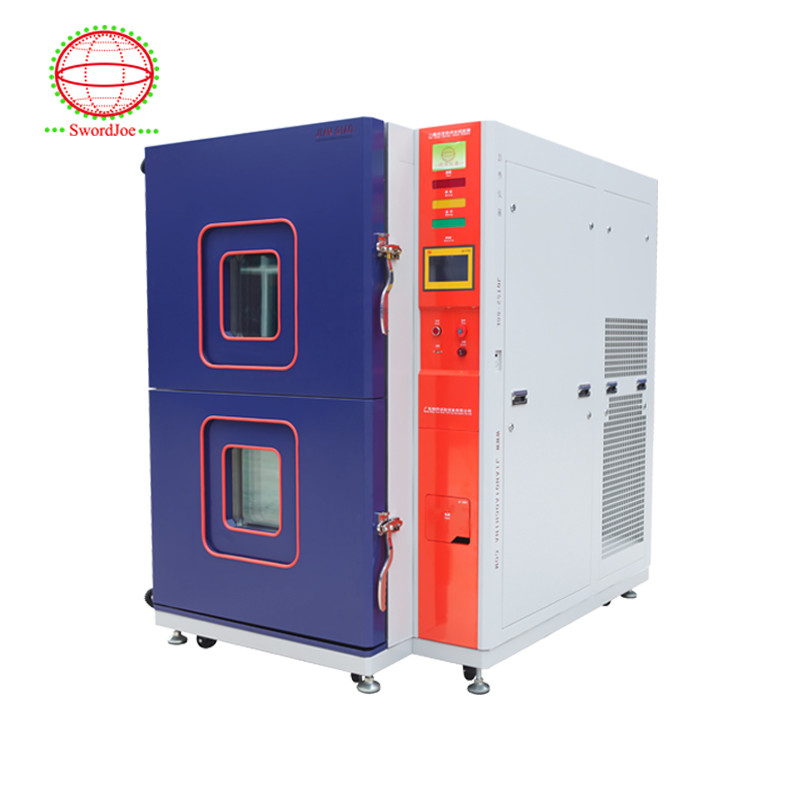

Two Zone Thermal Shock Test Equipment High And Low Temperature Shock Test Chamber

Name: Two Zone Thermal Shock Test Equipment High And Low Temperature Shock Test Chamber
Brand: Guangdong Jianqiao Testing Equipment Co., Ltd.
SKU: JQTS2-100
Availability: InStock

Brand Name: Jianqiao

Model Number: JQTS2-100

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Supply Ability: 300 sets /year

Two Zone Thermal Shock Test Equipment

CE Thermal Shock Test Equipment

Low Temperature Shock Test Chamber

Product Details

Model:

JQTS-50/JQTS-100/JQTS-150/JQTS-225/JQTS-408

Temperature Range:

-40°C/-55°C/-65°C~+150°C

Highlight

Two Zone Thermal Shock Test Equipment

CE Thermal Shock Test Equipment

Low Temperature Shock Test Chamber

Product Description

The two Zone Thermal Shock Test Chamber is also known as: temperature shock test, high and low temperature shock test is used to assess the adaptability of the product to the rapid changes of the surrounding environment temperature, the identification test of equipment design and the indispensable test in the routine test of the batch production stage. In some cases, it can also be used for environmental stress screening tests. Applicable to all kinds of electronic components, hardware appliances, plastic materials, automotive, medical, chemical, communications and other industries

Advantage

1. the inner box material is made of national standard 1.2mm thick SUS#304 all stainless steel plate to ensure the long-lasting.

2. The main components of the electronic circuit control system are imported original brands (Taiwan Dongyuan, Swiss Jiale, Japan

Omron), good quality, high precision and high performance, low failure rate, long service life,

3. Advanced and reliable refrigeration and control system: the original imported fully enclosed French "Tecushe" or semi-closed

German "bock" compressor, the United States imported Honeywell refrigerant, the US Sporlan company custom model PWM control valve, Reliable accessories from world-renowned brands such as Danfoss of Denmark andTaiwan Delta 7/10" color Chinese-English Russian touch screen controller with powerful interface and easy operation

4. The humidification system pipeline is separated from the control circuit: the humidification system pipeline is separated from the power supply,

The two-zone thermal shock test chamber is divided into two parts: the high temperature zone and the low temperature zone. The parts to be tested are placed in the test zone. The temperature of the high temperature zone or the low temperature zone during the impact is automatically entered into the test zone according to the program for impact.

Model	JQTS2-50	JQTS2-80	JQTS2-100	JQTS2-150	JQTS2-225	JQTS2-408
Inner size WDH(cm)	353240	504040	505040	655046	657050	858060
Outer size WDH(cm)	125160185	135170185	140185190	160190205	160230210	180250230
Capacityt(L)	50L	80L	100L	150L	225L	408L
Weight(kg) N.W	800	900	950	1050	1250	1450
Temp.Shock Range	A:-40℃～180℃ B:-55℃～180℃ C:-65℃～180℃
Shock type	1. High Temp.→Low Temp. 3. Normal Temp →High Temp. →Normal Temp. →Low Temp. 2. Low Temp →High Temp. 4. Normal Temp →High Temp. →Normal Temp. →Low Temp
High Temp. Chamber	+60°C~+200°C
Pre-Heating Time	(+20°C～200℃) <35 minutes
Low Temp.Chamber	(-40°C/-55°C/-65°C) ~ -10°C
Pre-cooling Time	(+20°C～-75℃ )< 60minutes
Temperature transfer time	‘－40℃/-55°C/-65℃～＋180℃ <5 second (Two Zone)
Recover time	Heat chamber Exposure 30min
	Cold chamber Exposure 30 min
	within 5～10min
Temp.fluctuation range	±0.5℃
Chamber material	Outer shell : standard 1.5mm electrolytic plate Baked electrostatic painting Inner shell : standard 1.2mm thick SUS#304 stainless steel plate (matt treatment )
Insulation material	Glass fibre wool + Rigid polyurethane foam
Controller	7'LCD colorful Chinese and English touch screen (10 inch optional ),Program or fix setting ,120sets programs ,1200steps USB ,RS232 /R485 interface ,mobile APP , computer connection remote control (optional network interface )
Control system	P.I.D+S.S.R+Temp control system of microcomputer balance
Cooling type	Semi-closed two-stage compressor (water cooled) Fully-closed two-stage compressor (air -cooled )
Refrigant	HFC-404a and HFC23 /HFC-R449A/HFC-507
Compressor	Fully closed French “Tecumseh “compressor Semi-closed German “Bock “/"Bitzer" comporessor
Safety protection device	Fuse free switch, compressor high and low voltage protection switch,Over-temperature potector,Over -current protector , Refrigerant high -voltage protection switch, fault alarm system, electronic sound light alarm device
Spare parts	Glass viewing window , two shelves , 2*￠50mm cable Ports ,Casters ,
Power Supply	AC/380V,50HZ,20～50A,

Product Highlights

The two Zone Thermal Shock Test Chamber is also known as: temperature shock test, high and low temperature shock test is used to assess the adaptability of the product to the rapid changes of the surrounding environment temperature, the identification test of equipment design and the indispensable ...
