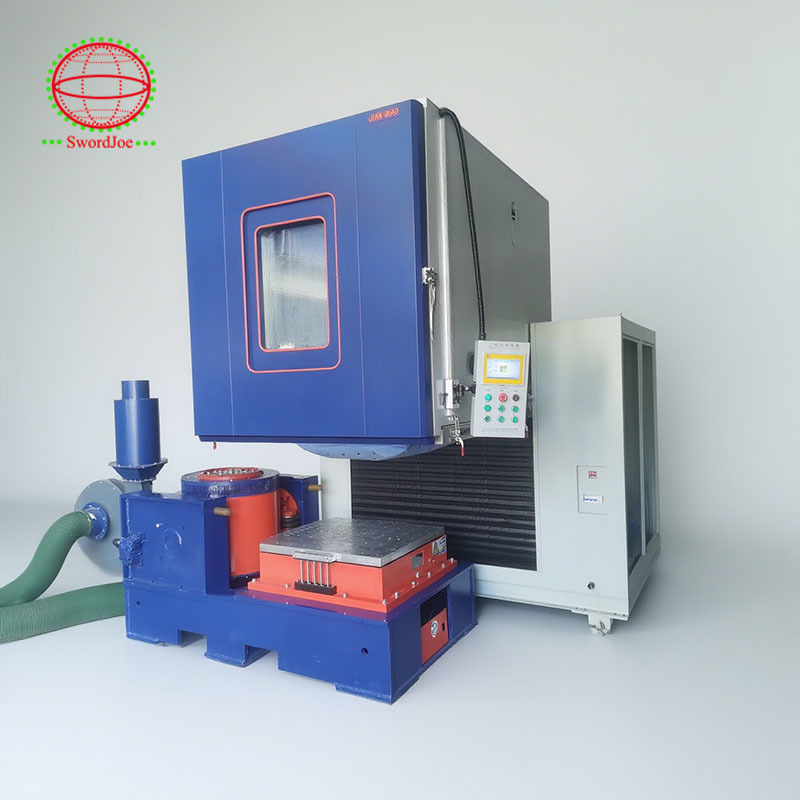

Hochleistungs-Vibrationstisch für Haltbarkeitstests unter verschiedenen Bedingungen
Produktdetails
| Frequenz: | 2000Hz | Sinuskraft: | 20kn /2000 kg /4409lbf |
|---|---|---|---|
| Zufällige Kraft: | 20kn /2000 kg /4409lbf | Schockkraft: | 98KN /9800KG /9918LBF |
| Kanal: | 2/4/8/16 | Maximale Beschleunigung: | 100g |
| Maximale Verschiebung: | 100 mm (4 "）/76 mm (3")/51 mm (2 ") | Maximale Last: | 300 kg |
| bewegliche Teile Masse: | 20 kg | Ankermesser: | 335 mm |
| Hervorheben |
Vibrationstisch für Haltbarkeitstests,Hochleistungs-Vibrationstesttisch,Zuverlässiger Vibrationstisch für Produkte |
||
Produktbeschreibung
| Attribut | Wert |
|---|---|
| Frequenz | 2000Hz |
| Sinuskraft | 20kn /2000 kg /4409lbf |
| Zufällige Kraft | 20kn /2000 kg /4409lbf |
| Schockkraft | 98KN /9800KG /9918LBF |
| Kanal | 2/4/8/16 |
| Maximale Beschleunigung | 100g |
| Maximale Verschiebung | 100 mm (4 ")/76 mm (3")/51 mm (2 ") |
| Maximale Last | 300 kg |
| Bewegliche Teile Masse | 20 kg |
| Ankermesser | 335 mm |
| Parameter | Wert |
|---|---|
| Shaker -Modell | JQA-502-450 / JQA-503-450 |
| Frequenzbereich (Hz) | 5 ~ 2700 |
| Sinuskraft (KN) | 50 |
| Schockkraft (KN) | 100/150 |
| Max. Beschleunigung (m/s²) | 980 |
| Max. Geschwindigkeit (m/s) | 2 |
| Max. Verschiebung (MM PP) | 51/76 |
| Max. Last (kg) | 800 |
| Vibrationsisolierungsfrequenz (Hz) | 2.5 |
| Bewegliche Teile Gewicht (kg) | 50 |
| Ankerdurchmesser (φmm) | 450 |
Produkt-Highlights
Hochleistungs-Vibrationstabelle Ideal für Durabilitätstests, um sicherzustellen, dass Ihre Produkte unter verschiedenen Bedingungen zuverlässig funktionieren. Schlüsselspezifikationen Attribut Wert Frequenz 2000Hz Sinuskraft 20kn /2000 kg /4409lbf Zufällige Kraft 20kn /2000 kg /4409lbf Schockkraft ...
