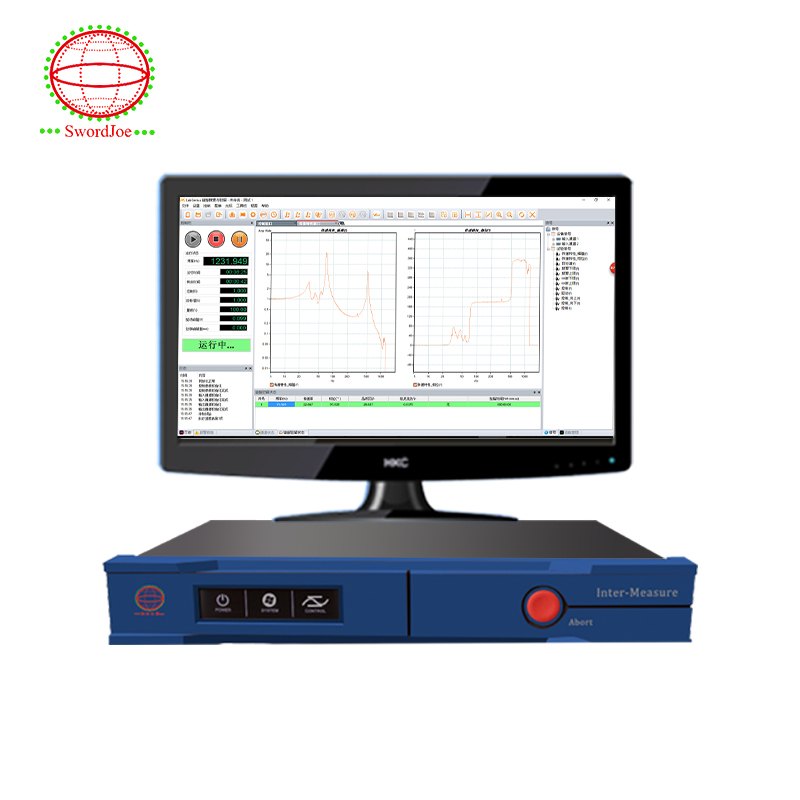

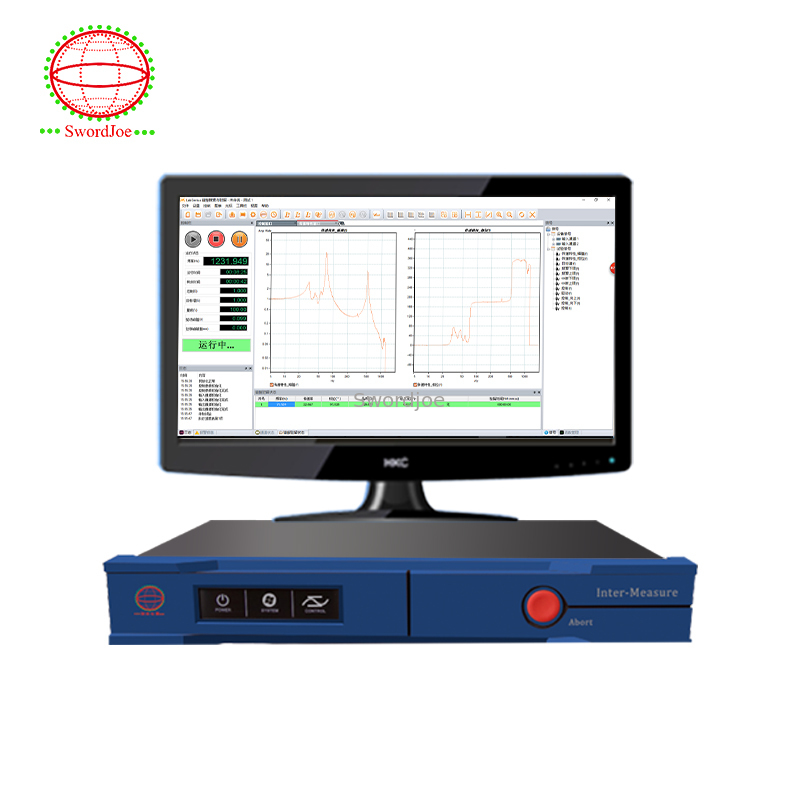

JQTV-9002 0-20kHz Vibration Controller Software Vibration Control System
Product Details
| Signal Analysis Features: | FFT, PSD, Time Domain | Signal Type: | Vibration |
|---|---|---|---|
| Signal Sampling Rate: | 100kHz | Signal Processing Type: | Digital |
| Vibration Signal Soure: | Software | Signal Recording Features: | Continuous, Triggered, Pre-trigger |
| Signal Output Format: | CSV, Excel, Matlab | Signal Output Type: | Analog |
| Signal Processing Features: | Filtering, Averaging, Peak Detection | Signal Amplitude Range: | 0-10V |
| Signal Compatibility: | Windows, Mac, Linux | Signal Frequency Range: | 0-20kHz |
| Signal Resolution: | 16-bit | ||
| Highlight |
20kHz Vibration Controller,Software Vibration Controller,Software Vibration Control System |
||
Product Description
| Attribute | Value |
|---|---|
| Signal Analysis Features | FFT, PSD, Time Domain |
| Signal Type | Vibration |
| Signal Sampling Rate | 100kHz |
| Signal Processing Type | Digital |
| Vibration Signal Source | Software |
| Signal Recording Features | Continuous, Triggered, Pre-trigger |
| Signal Output Format | CSV, Excel, Matlab |
| Signal Output Type | Analog |
| Signal Processing Features | Filtering, Averaging, Peak Detection |
| Signal Amplitude Range | 0-10V |
| Signal Compatibility | Windows, Mac, Linux |
| Signal Frequency Range | 0-20kHz |
| Signal Resolution | 16-bit |
- Force Deflection Analysis: Essential for packaging tests to prevent product damage by analyzing position changes relative to accelerometer mounting.
- Vibration Reliability Testing: Supports environmental adaptability, dynamic strength, dynamic characteristics, and other specialized vibration tests.
- SRS Test Implementation: Enables Shock Response Spectra analysis even without measured data, compliant with MIL-STD 810G standards.
- Phase Tracking in RSTD: Advanced resonance search, track and dwell testing with multiple tracking methods including phase tracking for fatigue and durability testing.
- Multivariable Control: Supports spectrum editing with constant displacement, velocity, and acceleration at different frequency ranges.
- Sine-on-Sine Testing: Reduces durability testing time by allowing multiple simultaneous sine tones, approved by major automotive manufacturers.
- Mechanical Impedance Analysis: Addresses vibration problems in modern lightweight structures with high rotational speeds.
| Feature | JQVT-9002 | JQVT-9004/9008 | JQVT-9016 |
|---|---|---|---|
| Input channel | 2×BNC | 4 or 8×BNC | 16×BNC |
| Output channel | 1×BNC, 1 Drive | 2×BNC, 1 Drive, 1 AUX | |
| Input mode | AC/DC (Single-ended), AC/DC (difference), EPE, Charge, TEDS | ||
| Digital I/O | 8-bit input, 8-bit output | ||
| ADC&DAC | 24 bits, independent per channel | ||
| Range | Voltage: ±10V, ±1V, ±0.1V; Charge: ±10000pC, ±1000pC, ±100pC | ||
| Signal to noise ratio | >100dB | ||
| Channel matching | Amplitude ratio ±0.05dB, phase difference ±0.5 degrees (1Hz~20kHz) | ||
| Size | 290×210×60mm | 390×280×60mm | 435×280×60mm |
| Weight | 2.6 kg | 4.2 kg | 5.0 kg |
| Cooling method | Conduction fanless cooling | ||
| Communication Interface | High speed standard Ethernet interface / USB | ||
| Software function | Random, sinusoidal, classic shock, resonance search and dwell (optional right side function) | Random, sinusoidal, classic shock, resonance search and dwell, transient shock, shock response spectrum, transient capture, sine plus random, random plus random, sine plus random plus random, sine plus sine, long-term waveform recurrence | |
