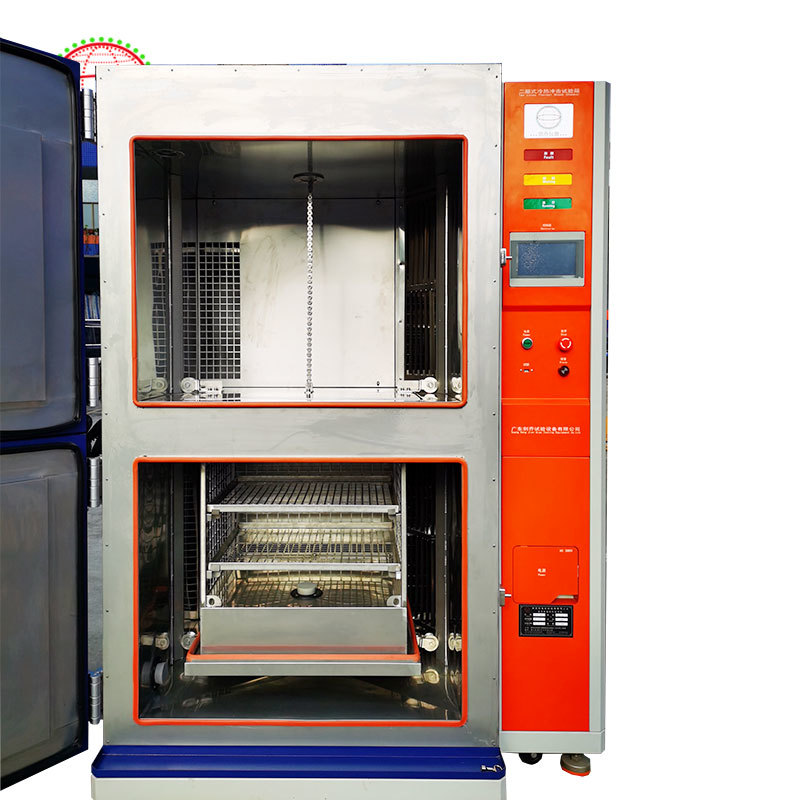

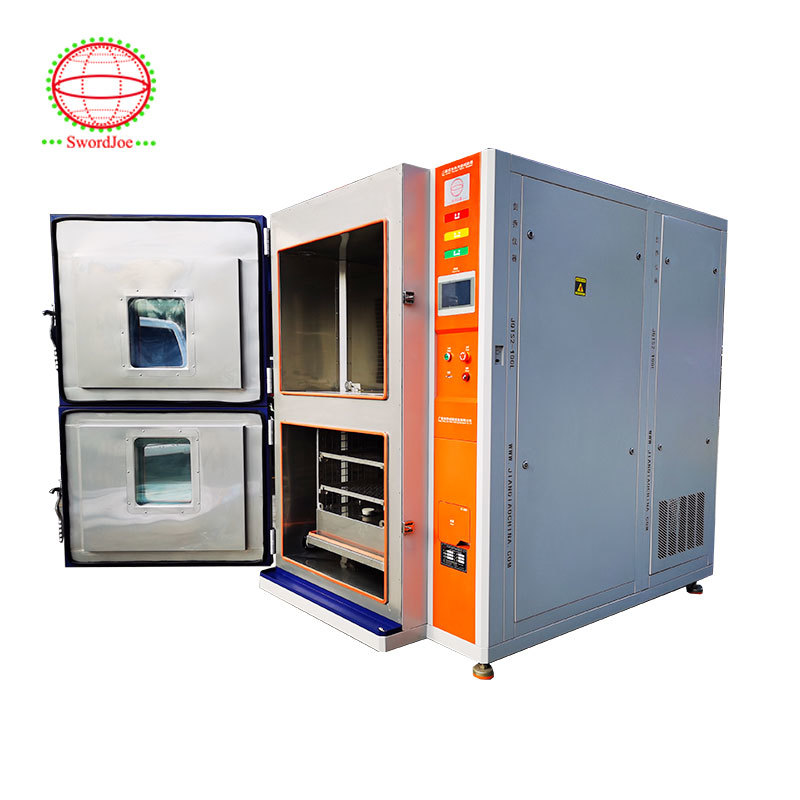

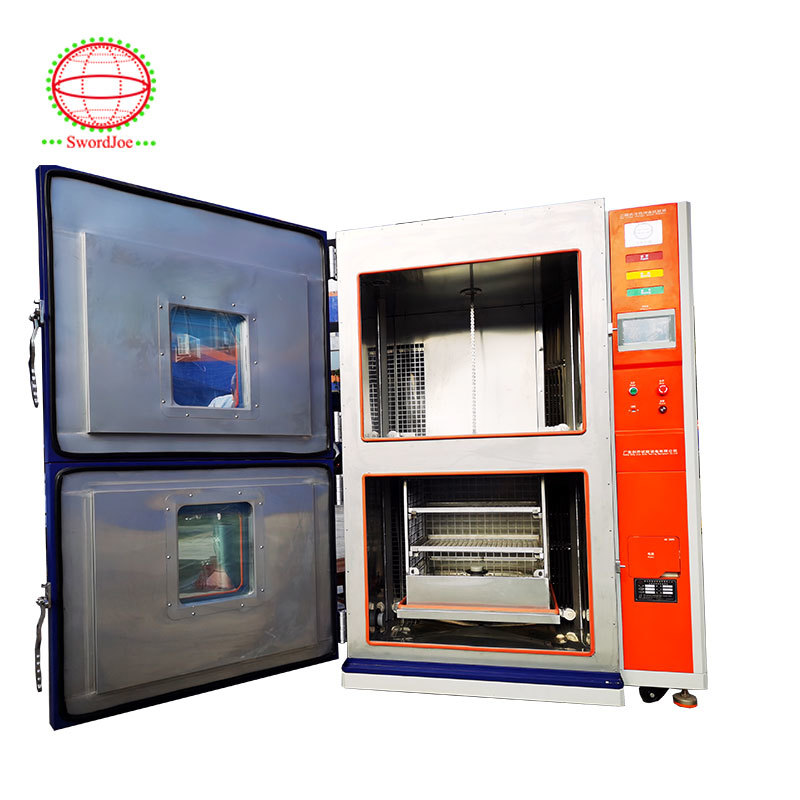

Two Zone Thermal Shock Testing Chamber 50L 80L 100L 150L 225L 408L Capacityt
Product Details
| Model: | JQTS-50/JQTS-100/JQTS-150/JQTS-225/JQTS-408 | Temperature Range: | -40°C/-55°C/-65°C~+150°C |
|---|---|---|---|
| Highlight |
Thermal Shock Testing Chamber 150L,Thermal Shock Testing Chamber 80L,Two Zone Temperature Shock Test |
||
Product Description
Perfection in Performance, Equipment and Design
Product Protection
• Protective mesh panels - keeps product in basket during test
• Moveable product sensor
• Hot & cold zones product temperature limiter
Extended Temperature
Range up to 250ºC
• Allows for higher
pre-temp conditioning
High Basket Loads
• Allows for heavy products to be tested
• Allows for higher throughput
Increased Productivity
• 1,000 cycles without defrost.
• Time optimized mode - higher product throughput
• Pause function - allows for uninterrupted testing
• Programmable Pre-temp function - allows for
pre-conditioning of inactive zone
Safety
• Electrical and Mechanical Transfer interlock
• Main Power disconnect
• Chamber overheat protection
• Lockable Door Latch
• Product door access protection
Energy Savings
• Green Mode - up to 40% in energy savings.
• Reduce C02 emissions
Quiet Operation
• Ideal for laboratory testing
Small Footprint
• Allows for small test lab operation
MIL-STD-883 E Method 1010.8, degree of intensity D with 4.5 kg ICs distributed over 2 shelves, measurement in specimen.
MIL-STD-883 J Method 1010.8, degree of intensity D with 12 kg ICs distributed over 3 shelves, measurement in specimen.
MIL-STD-883 F Method 1010.8, degree of intensity D with 20 kg ICs distributed over 3 shelves, measurement in specimen.
MIL-STD-883 J Method 1010.8, degree of intensity F with 25 kg ICs distributed over 3 shelves, measurement in specimen.
MIL-STD-883 F Method 1010.8, degree of intensity C with 50 kg ICs distributed over 3 shelves, measurement in specimen.
The performance data refer to +25 °C ambient temperature, 4380V V nominal voltage, without specimen, optional equipment and heat compensation.
Chambers typically use refrigerants R404A and R23. Consult factory.
|
Model |
JQTS2-50 |
JQTS2-80 |
JQTS2-100 |
JQTS2-150 |
JQTS2-225 |
JQTS2-408 |
|
Inner size |
35*32*40 |
50*40*40 |
50*50*40 |
65*50*46 |
65*70*50 |
85*80*60 |
|
Outer size |
125*160*185 |
135*170*185 |
140*185*190 |
160*190*205 |
160*230*210 |
180*250*230 |
|
Capacityt(L) |
50L |
80L |
100L |
150L |
225L |
408L |
|
Weight(kg) N.W |
800 |
900 |
950 |
1050 |
1250 |
1450 |
|
Temp.Shock Range |
A:-40℃～180℃ B:-55℃～180℃ C:-65℃～180℃ |
|||||
|
Shock type |
1. High Temp.→Low Temp. 3. Normal Temp →High Temp. →Normal Temp. →Low Temp. |
|||||
|
High Temp. Chamber |
+60°C~+200°C |
|||||
|
Pre-Heating Time |
(+20°C～200℃) <35 minutes |
|||||
|
Low Temp.Chamber |
(-40°C/-55°C/-65°C) ~ -10°C |
|||||
|
Pre-cooling Time |
(+20°C～-75℃ )< 60minutes |
|||||
|
Temperature |
‘－40℃/-55°C/-65℃～＋180℃ <5 second (Two Zone) |
|||||
|
Recover time |
Heat chamber Exposure 30min |
|||||
|
Cold chamber Exposure 30 min |
||||||
|
within 5～10min |
||||||
|
Temp.fluctuation range |
±0.5℃ |
|||||
|
Chamber material |
Outer shell : standard 1.5mm electrolytic plate Baked electrostatic painting |
|||||
|
Insulation material |
|
|||||
|
Controller |
7'LCD colorful Chinese and English touch screen (10 inch optional ),Program or fix setting ,120sets programs ,1200steps USB ,RS232 /R485 interface ,mobile APP , computer connection remote control (optional network interface ) |
|||||
|
Control system |
P.I.D+S.S.R+Temp control system of microcomputer balance |
|||||
|
Cooling type |
Semi-closed two-stage compressor (water cooled) |
|||||
|
Refrigant |
HFC-404a and HFC23 /HFC-R449A/HFC-507 |
|||||
|
Compressor |
Fully closed French “Tecumseh “compressor |
|||||
|
Safety protection device |
Fuse free switch, compressor high and low voltage protection switch,Over-temperature potector,Over -current protector , Refrigerant high -voltage protection switch, fault alarm system, electronic sound light alarm device |
|||||
|
Spare parts |
Glass viewing window , two shelves , 2*￠50mm cable Ports ,Casters , |
|||||
|
Power Supply |
AC/380V,50HZ,20～50A, |
|||||
