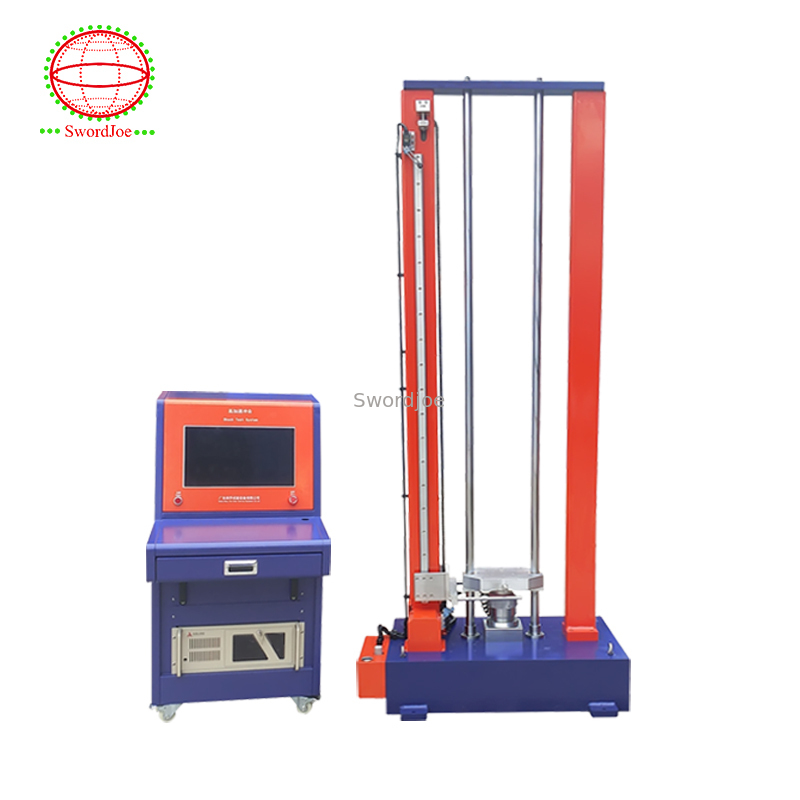

IS Shock Test Machine
The Shock Test Machine is a high-acceleration Shock Test Machine specially developed to meet the requirements of the military industry and home appliances. It adopts the drop principle. In order to increase the initial velocity, the air pressure reverse thrust or spring energy storage is adopted. By adjusting the inflation pressure, it is convenient to achieve various accelerations. For high accelerations that are difficult to achieve, the machine is equipped with a waveform amplifier.
Feature
Low pressure cylinder
Anti-pushing force and brake power are all low-pressure cylinders, safe and reliable, easy to maintain.
Two pneumatic brake mechanisms
Two pneumatic brake mechanisms work simultaneously to ensure reliable locking
Cylinder or segmented spring drive
Driven by cylinder or segmented spring, the magnitude of the impact overload value is controlled by adjusting the air pressure, which is quick and convenient.
|
Model |
IS5 |
IS10 |
IS25 |
IS50 |
IS100 |
IS200 |
IS300 |
|
|
Maximum test load (kg) |
5 |
10 |
25 |
50 |
100 |
200 |
300 |
|
|
Table size (mm*mm) |
120*120 |
200*200 |
350*350 |
500*500 |
700*700 |
750*750 |
800*800 |
|
|
Shock waveform |
Half sine |
100~30000 |
100~20000 |
100~10000 |
100~6500 |
150~6000 |
150~5000 |
150~3500 |
|
After peak saw-tooth |
100~1000 |
100~1000 |
100~1000 |
100~1000 |
100~1000 |
150~1000 |
150~1000 |
|
|
Trapezoidal wave |
150~1500 |
150~1500 |
150~1200 |
150~1200 |
150~1200 |
150~1000 |
100~1000 |
|
|
Pulse duration time (m/s) |
Half sine waveform |
0.5~20 |
0.6~20 |
0.8~20 |
1.5~20 |
2~20 |
2.5~20 |
3~20 |
|
After peak saw-tooth |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
|
|
Trapezoidal wave |
6~20 |
6~20 |
6~20 |
6~25 |
6~25 |
6~25 |
6~25 |
|
|
Maximum impact distance (mm) |
1550 |
1500 |
1400 |
|||||
|
Anti-secondary impact device |
Air pressure friction brake |
Hydraulic friction brake |
||||||
|
Table weight (kg) |
1300 |
1500 |
2800 |
3800 |
4350 |
4900 |
6250 |
|
|
Dimensions |
900*450*2600 |
1000*500*2700 |
1100*800*2800 |
1100*750*2800 |
1350*850*2850 |
1420*920*2900 |
1480*1000*2950 |
|
|
Control and measurement system |
OKS01 |
|||||||
|
Power requirements |
220V±10% single phase AC 50Hz 2kVA |
|||||||
|
Hydraulic pump station power requirements |
380V±10% 3 phases AC 50Hz |
|||||||
|
Hydraulic pump station power consumption (kVA) |
2.5 |
2.5 |
4 |
4.6 |
4.6 |
6.2 |
6.5 |
|
|
Applicable standard |
GB/T2433.5,GB/T2423.6,IEC68-2-29,JJG497-200 |
|||||||
